GA4K01

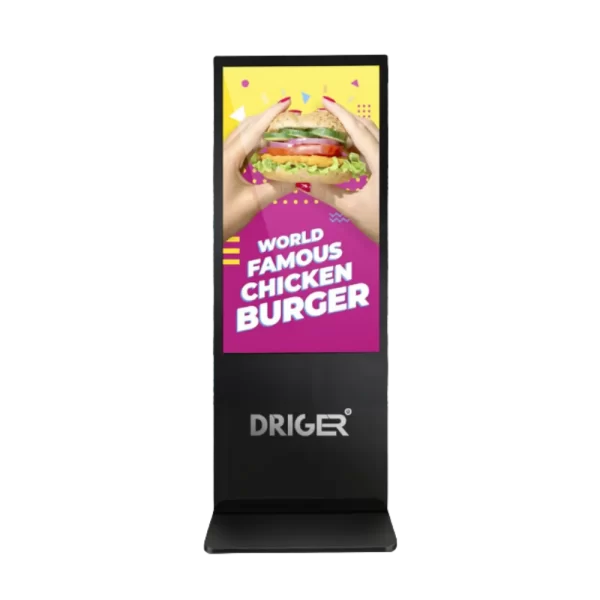

Interactive Digital Kiosk

Model No	GA4K01
Specification	43″	50″	55″	65″	75″	85″	98″
Picture Display Size (mm)	942 × 530	1073 × 604	1208 × 679	1427 × 803	1649.66 × 927.936	1872 × 1053	2158.85 × 1214.35
Resolution	3840 × 2160	3840 × 2160	3840 × 2160	3840 × 2160	3840 × 2160	3840 × 2160	3840 × 2160
Display Color	16.7M (8-bit)
Brightness	350 cd/m²	350 cd/m²	350 cd/m²	350 cd/m²	350 cd/m²	350 cd/m²	350 cd/m²
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Screen Protection	4mm fully toughened high explosion-proof glass
Motherboard Model	Android Box	Android Box	Android Box	Android Box	Android Box	Android Box	Android Box
CPU	Allwinner Quad Core ARM Cortex A53
Operating System	Android 10.0	Android 10.0	Android 10.0	Android 10.0	Android 9.0	Android 9.0	Android 9.0
Memory (RAM)	2GB	2GB	2GB	2GB	2GB	2GB	2GB
Storage (ROM)	16GB	16GB	16GB	16GB	16GB	16GB	16GB
Decoding Resolution	4k	4k	4k	4k	4k	4k	4k
Audio Output	2 × 5W (8Ω)	2 × 5W (8Ω)	2 × 5W (8Ω)	2 × 5W (8Ω)	2 × 10W (8Ω)	2 × 10W (8Ω)	2 × 10W (8Ω)
USB Ports	2	2	2	2	2	2	2
RJ45 Port	1	1	1	1	1	1	1
4G Module	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Power Supply Input	100-240V~ 50/60Hz
Power Consumption (W)	≤70W	≤70W	≤140W	≤140W	≤180W	≤380W	≤450W
Packaging Size (mm)	1835×150×690	1855×150×760	1875×150×840	2100×150×940	1810×230×1130	2045×230×1260	2340×235×1410
Base Size (mm)	–	–	–	–	1485×140×550	1485×140×550	1660×140×550
Gross Weight (kg)	32	37	46	58	55.5	65	92.5
