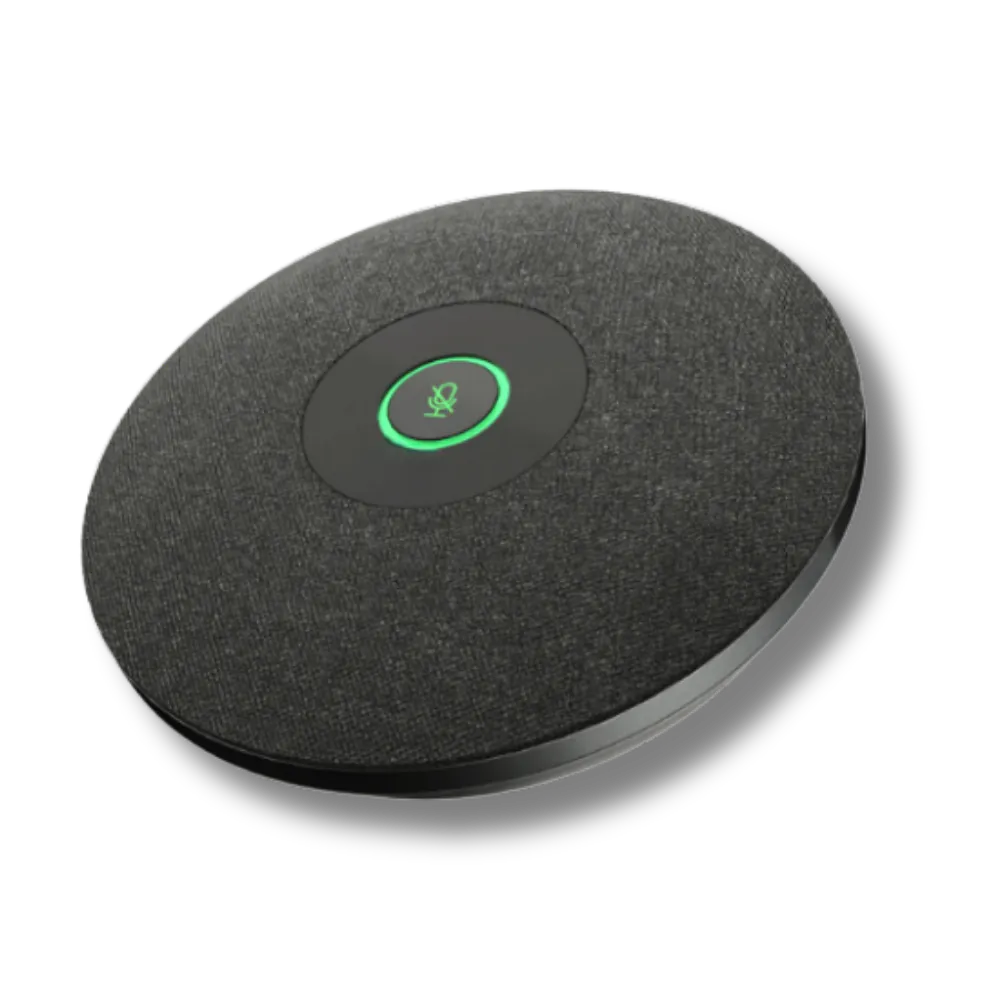

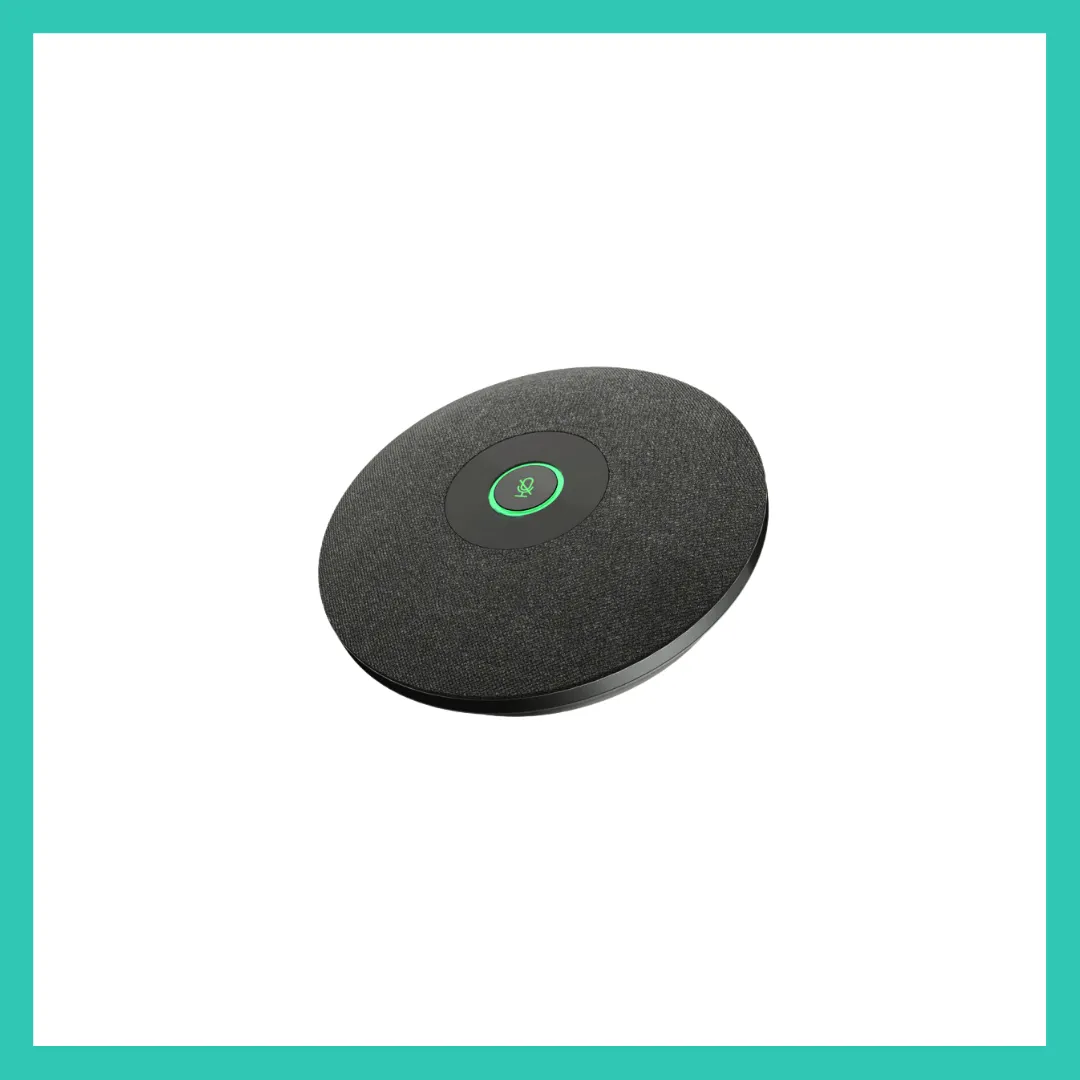

MA-9U
Omnidirectional DigitalArray Microphone
Digital Array Microphone, Long Distance Voice Pickup
Multiple AudioAlgorithms, High Quality of Sound
Intelligent Voice Tracking
Simply Installation, Plug and Play
Digital Array Microphone
High SNR ring microphone array design, clear pickup from long distance. Let the speaker move around more freely in the room and get rid of the constraints.
Intelligent Voice Tracking
With blind beamforming technology, precise positioning, adaptive sound field environment can achieve voice enhancement and better anti-interference ability.
Even Coverage of Conference Room Pickup
8-meters voice pickup, distributed sound pickup and interaction can evenly cover the space of large and medium sized conference rooms.
Flexible Installation for Lifting/Ceiling/Wall Mounting
Support multiple installation methods such as desktop and lifting, flexible and fast deployment, and reduce operation and maintenance costs.
| Audio Parameters | |
|---|---|
| Microphone Type | Digital Array Microphone |
| Microphone Array | Built-in 7 mics to form a circular array microphone |
| Pickup Distance | 8m |
| Sensitivity | -26 dBFS |
| SNR | 64 dB(A) |
| Frequency Response | 20Hz – 16kHz |
| USB Protocol | Support UAC |
| Automatic Echo Cancellation (AEC) | Support |
| Automatic Noise Suppression (ANS) | Support |
| Automatic Gain Control (AGC) | Support |
| ·Hardware I/O | |
|---|---|
| Audio Input | 1 x 3.5mm line in |
| Audio Output | 2 x 3.5mm line out |
| USB Interface | USB audio interface (Type-B), support UAC1.0 protocol, audio data communication, software upgrade and parameter configuration |
| Generic Spec | |
|---|---|
| Power Input | USB DC5V |
| Dimension | Φ 130mm x H33mm |
| HardwareInterface | |
|---|---|
| Network Interface | 1 × Uplink LAN interface ; 1 × Downlink cascaded DMIC interface, with up to 6 levels of microphone cascaded |
| USB Interface | 1 × DEVICE interface, used as a USB audio device to connect to a USB host (such as a PC); 1 × HOST interface, used as a USB host to connect USB devices |
| Audio Interface | 4 × Input Phoenix terminal interface, unbalanced linear audio input; 4 × OUTPUT Phoenix terminal interface, unbalanced linear audio output |
| Power Interface | DC 12V |
| Key (M702A) | Tap the button (mute button with light indication) |
| ·Hardware I/O | |
|---|---|
| Power | DC 12V/3A |
| POE | POE 48V power supply, supporting IEEE802.3 AT |
| Dimension | 160mm × 88mm × 27mm |
| Net Weight | Approx 0.4Kg |
- Digital Array Microphone, Long Distance Voice Pickup
- Multiple Audio Algorithms, High Quality of Sound
- Intelligent Voice Tracking
- Simply Installation, Plug and Play
- Professional Digital Audio Processor
- Cascade
- Audio Algorithm
- Plug and Play Wiring is Simple
