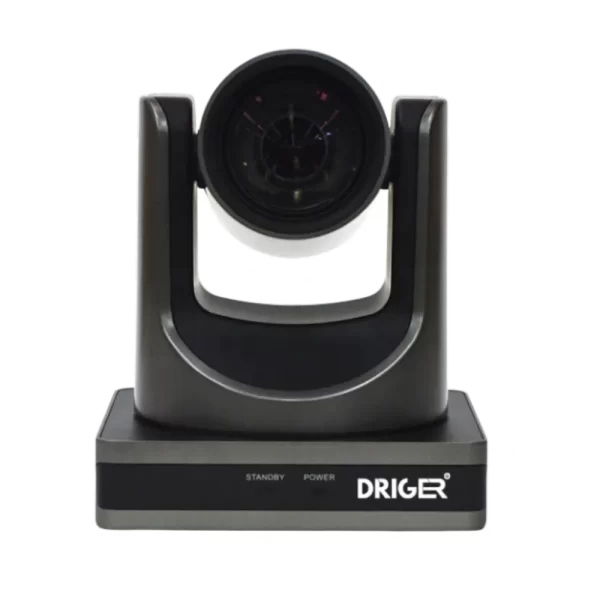

VC-20RU
PTZ Camera with AI Technology
Features
- 72.5° Wide-Angle Lens with 12× Optical Zoom
- High-Quality 1080P Image
- Low Illumination Performance
- Full-Function USB Interface
- Ultra-high Compatibility
| Lens Spec | |
|---|---|
| Lens | 20x, f4.42mm – 88.5mm, F1.8 – F2.8 |
| Horizontal FOV | 60.7° – 3.36° |
| Vertical FOV | 34.1° – 1.89° |
| HD Output | 1 x HDMI: Version 1.3; 1 x 3G-SDI: BNC, 800mVp-p, 75Ω, as per SMPTE 424M standard |
| Protocols | FULL NDI, NDI|HX2, TCP/IP, HTTP, RTSP, RTMP, RTMPS, Onvif, DHCP, Multicast, SRT, GB/T 28281 etc. |
| Camera Spec | |
| Signal System | HDMI, 3G-SDI: 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 |
| Sensor | 1/2.8 inches, CMOS, Effective Pixels: 2.07 Megapixels |
| Scanning Mode | Progressive |
| Minimum Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s – 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| SNR | ≥ 55dB |
| Pan Angle | ±170° |
| Tilt Angle | -30° ~ +90° |
| Pan Speed | 1.7° – 100°/s |
| Tilt Speed | 1.7° – 69.9°/s |
| Image Flip | Support |
| Image Freeze | Support |
| Preset Position | 255 |
| Preset Accuracy | 0.1° |
| Network Spec | |
| Video Compression | H.264 |
| Video Stream | First Stream, Second Stream |
| First Stream Resolution | 1920×1080, 1280×720, 1024×576 etc. |
| Second Stream Resolution | 1280×720, 1024×576, 720×576 etc. |
| Video Bit Rate | 32kbps~20480kbps |
| Bit Rate Control | VBR, CBR |
| Frame Rate | 1fps ~ 60fps |
| Audio Compression | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| USB Spec | |
| Operating System Supported | Windows 7 (only supports UVC1.1 features), Windows 8 and above version, Mac OS X, Linux 2.4.6 and above version, Android needs to include the version of UVC-related drivers |
| Color System / Compression | YUY2 / H.264 / MJPEG |
| Video Format | Support a variety of different frame rates and resolution video formats, up to 1080p60 YUY2 output |
| USB Audio | 32K Sampling Rate, Support UAC2.0 |
| USB Video Communication Protocol | UVC 1.1–1.5 |
| UVC PTZ Control | Support |
| Audio | |
| Microphone Array | Built-in dual microphones, 100Hz to 16KHz frequency response. |
| Analog Audio Input/Output | Support 3.5mm Line-In; Support 3.5mm Line-Out |
| Digital Audio Output | Support HDMI, USB, LAN, 3G-SDI etc |
| I/O | |
| Audio Interface | 1 x Line In, 3.5mm Jack 1 x Line Out, 3.5mm Jack |
| Control Interface | 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only |
| Power Interface | JEITA type (DC IN 12V) |
| Generic Spec | |
| Input Voltage | DC 12V / PoE+ (802.3at) |
| Input Current | 1.5 A (Max.) |
| Operating Temperature | 0° C ~ 40° C |
| Storage Temperature | -40° C ~ 60° C |
| Power Consumption | 15W (Max.) |
| Dimension | 169mm x 142mm x 175mm |
| Net Weight | 1.5kg |
