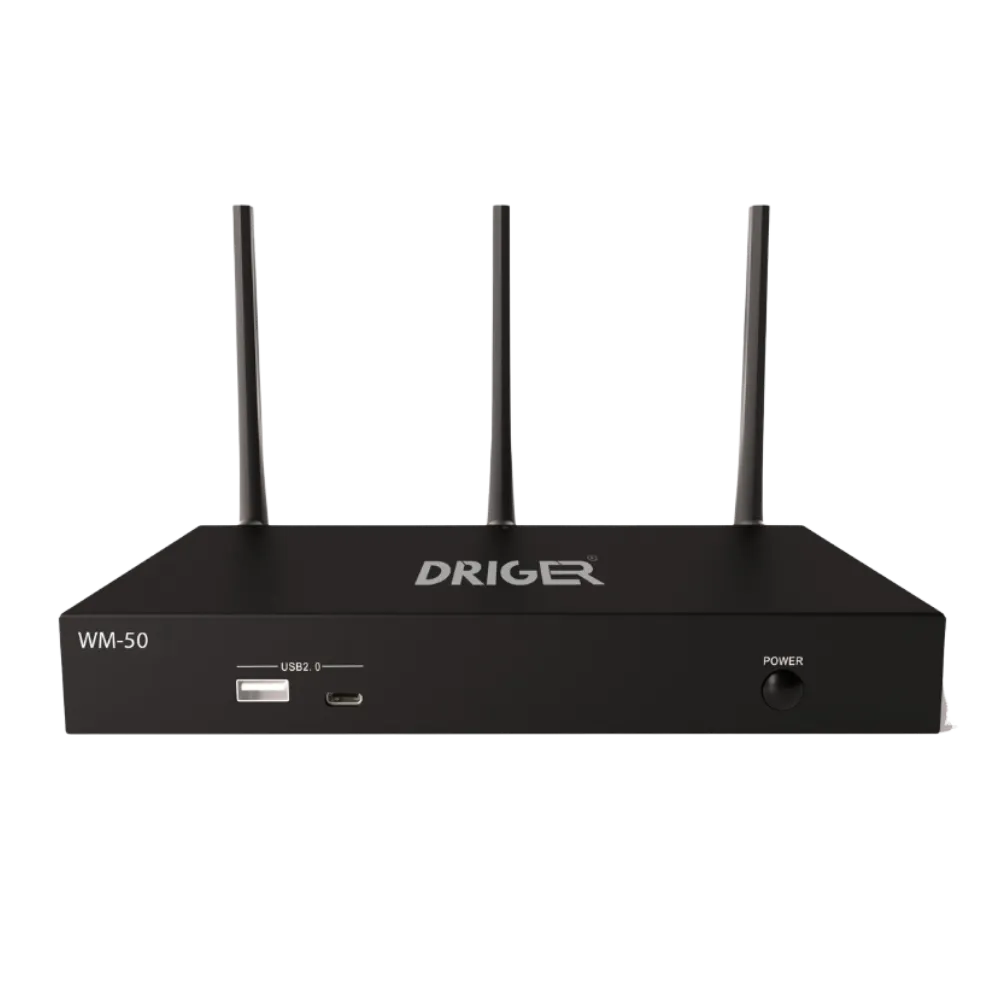

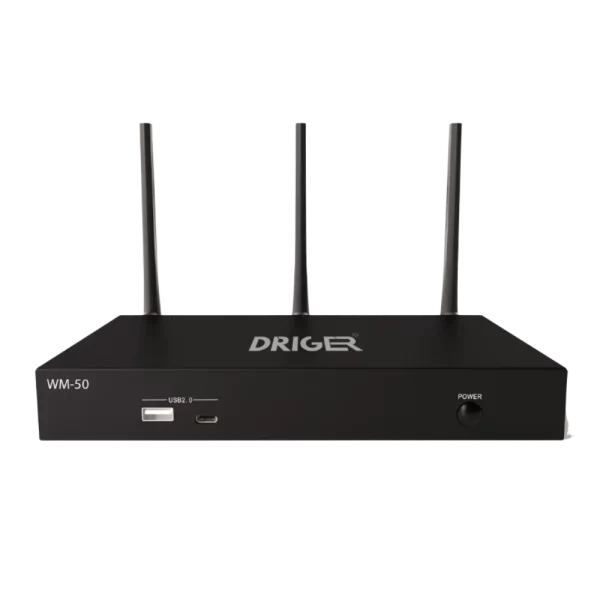

WM-50 -

Working Seamless with VC Platform
Multi Content Sharing
Touch & Play Presentation
Hybrid Conference Collaboration
Smooth AV and HD picture Quality
Host Control
Network Security
IT Remote Management

Model No	WM-50
Description	Wireless AV Content Sharing & BYOD collaboration System
Video / Audio Formats	HDMI Output: HDMI output 1x HDMI 19-pin female connector
Video Output Resolution: 3840×2160@60Hz, 3840×2160@30Hz, 1920x 1080@60Hz
Format Compliance: HDMI1.4/HDMI2.0
Video Capacity: 1080P@<60Hz Airplay for IOS devices, 1080P@ <60Hz “Wireless Media” app, 1080P@ <60Hz for all show-me button
HDCP: HDCP1.4/HDCP2.2
Analog Audio Output: 1x 3.5mm PC audio female connectors
Interface	LAN Port: RJ45 x2: 1000Mbps x 1, 100Mbps x 1
USB Interface: USB3.0 x 3, USB 2.0 x 1, Type-C x 2
Audio Input: AirPlay, Windows/MAC, WMH, USB/BT SpeakerPhone
Control Connectors: 3.5mm Phoenix terminal/ RS232 interface
Features	Window Simultaneous on Screen: ≥4+ 14(4 main windows+14 thumbnail windows）
Number of simultaneous: Connections ≥ 16
Wireless Data Rate: Up to 1200Mbps
Frame Rate: 20-60 FPS
Latency: <100ms, Min 20ms
Wireless Trasmission Protocol: WIFI IEEE 802. 1 1 a/g/n/ac
Frequency band: 2.4 GHz & 5 GHz
General	Dimension: 165mm x 95mm x 24.5mm
Weight: 0.4lbs （200g）
Temperature: (-)20 °C to 60 °C
Humidity: 20% to 90%
DC Power: 12V / POE
POE Standard: IEEE802.3af
Power Consumption: 10W(MAX)
Dynamic Wi-Fi Password: Included
Data encryptione: AES&RSA
Wireless Display Technology: Airplay, Miracast, chromecast, App for different OS
Dongle: HDMI with USB / Type-C
Video Frame Rate: 20 – 60fps
Latency: 100ms
Control: RS232,Telnet, Central Management App
Management Platform: Batch configuration, Batch upgrade and User manager
Split-screen: 4
Wireless USB Cam/Speaker, Mic: Supported
Collaboration	Wireless Touchback: Supported
Whiteboard annotation: Supported
Remote View: Supported

Model No

WM-50

Description

Wireless AV Content Sharing & BYOD collaboration System

Video / Audio Formats

HDMI Output: HDMI output 1x HDMI 19-pin female connector

Video Output Resolution: 3840×2160@60Hz, 3840×2160@30Hz, 1920x 1080@60Hz

Format Compliance: HDMI1.4/HDMI2.0

Video Capacity: 1080P@<60Hz Airplay for IOS devices, 1080P@ <60Hz “Wireless Media” app, 1080P@ <60Hz for all show-me button

HDCP: HDCP1.4/HDCP2.2

Analog Audio Output: 1x 3.5mm PC audio female connectors

Interface

LAN Port: RJ45 x2: 1000Mbps x 1, 100Mbps x 1

USB Interface: USB3.0 x 3, USB 2.0 x 1, Type-C x 2

Audio Input: AirPlay, Windows/MAC, WMH, USB/BT SpeakerPhone

Control Connectors: 3.5mm Phoenix terminal/ RS232 interface

Features

Window Simultaneous on Screen: ≥4+ 14(4 main windows+14 thumbnail windows）

Number of simultaneous: Connections ≥ 16

Wireless Data Rate: Up to 1200Mbps

Frame Rate: 20-60 FPS

Latency: <100ms, Min 20ms

Wireless Trasmission Protocol: WIFI IEEE 802. 1 1 a/g/n/ac

Frequency band: 2.4 GHz & 5 GHz

General

Dimension: 165mm x 95mm x 24.5mm

Weight: 0.4lbs （200g）

Temperature: (-)20 °C to 60 °C

Humidity: 20% to 90%

DC Power: 12V / POE

POE Standard: IEEE802.3af

Power Consumption: 10W(MAX)

Dynamic Wi-Fi Password: Included

Data encryptione: AES&RSA

Wireless Display Technology: Airplay, Miracast, chromecast, App for different OS

Dongle: HDMI with USB / Type-C

Video Frame Rate: 20 – 60fps

Latency: 100ms

Control: RS232,Telnet, Central Management App

Management Platform: Batch configuration, Batch upgrade and User manager

Split-screen: 4

Wireless USB Cam/Speaker, Mic: Supported

Collaboration

Wireless Touchback: Supported

Whiteboard annotation: Supported

Remote View: Supported

WM-50

Features

WM-50: Specifications

You may also like

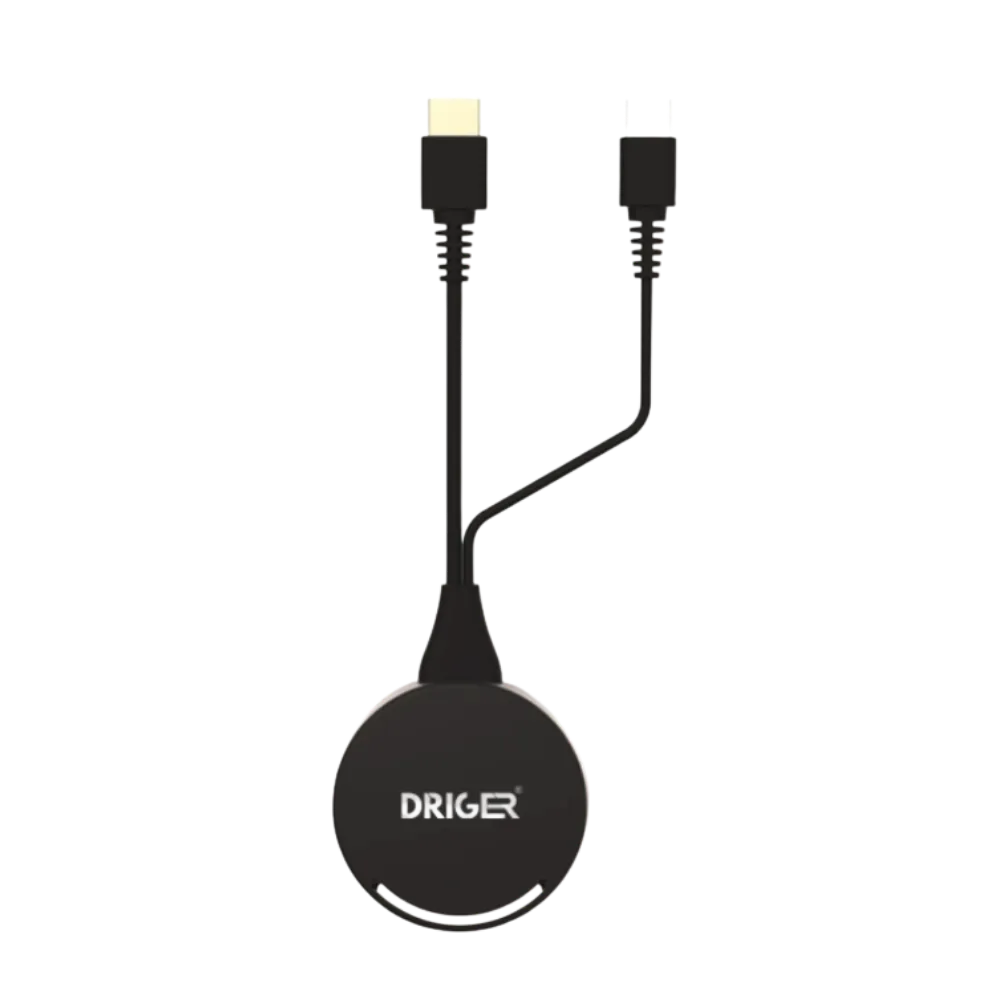

WM-50TH

Wireless Collaboration Conference System [HDMI Transmitter]

Wireless Collaboration

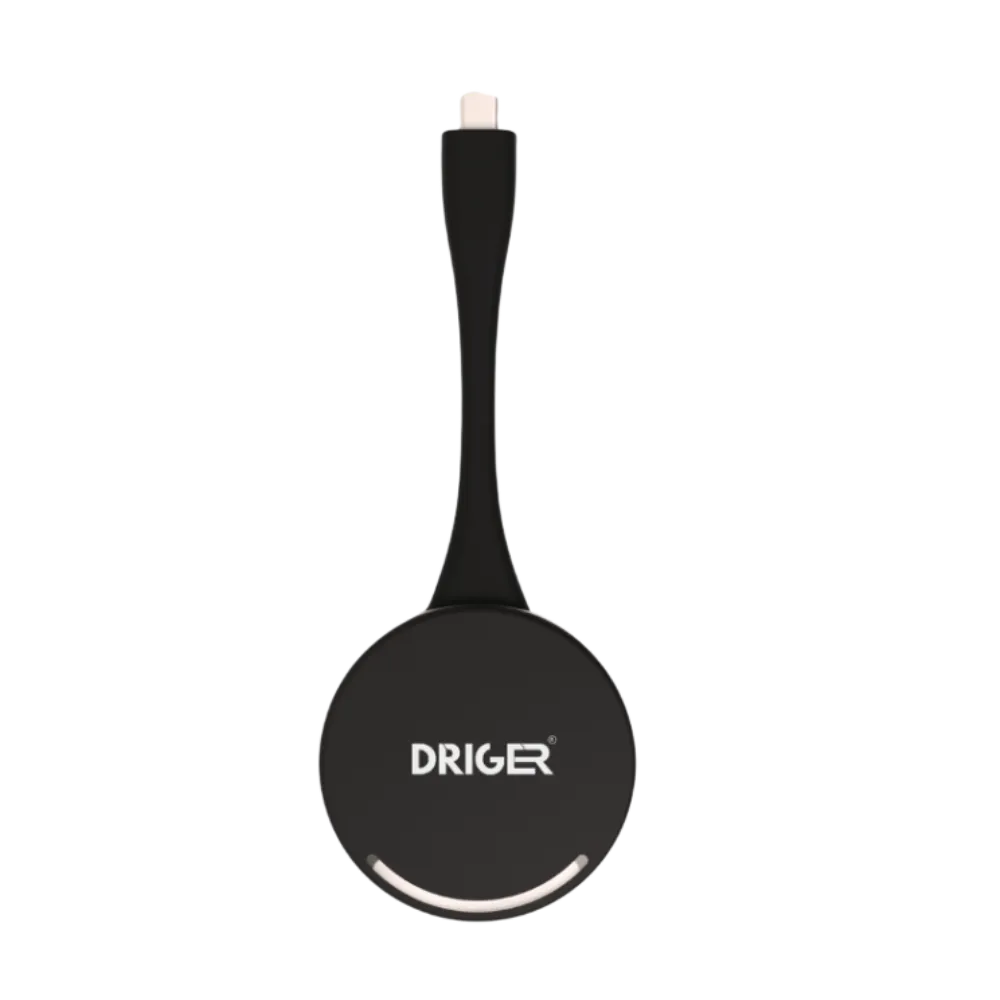

WM-50TC
