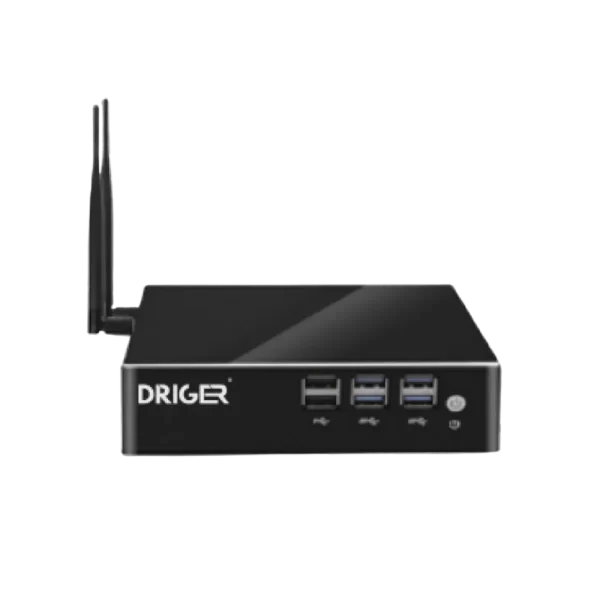

YM501
Industrial Grade Mini PC/i5 10210U 8G DDR4 500G SSD
Features
- Full aluminum alloy casing with intelligent temperature-controlled fan for cooling.
- Compact size, flexible and compact installation.
- Integrated Intel® Core™ 7th/8th/10th Gen processors.
- Supports diskless booting, power-on boot, network wake-up, and automatic timed power on/off.
- 4K HD, dual gigabit Ethernet ports, 8 USB ports.
- Supports WIFI and 4G module for wireless internet.
| NAME | YM-501 |
|---|---|
| Processor | Intel® Celeron 5205, Intel® Core™ 7th/8th/10th Gen processors. |
| Memory | 1*SO-DIMM DDR4 dual-channel memory slot, supports up to 32GB. |
| Storage | 1*M.2 solid-state drive interface (depending on the CPU). |
| Graphics | Integrated Intel® HD series graphics core. |
| Networking | 2*RTL8111G/H gigabit network cards, 1*MINI-PCIE interface supports 2.4G/5G WIFI communication. |
| Audio | Realtek ALC chip. |
| Display Interfaces | 4*USB3.0, 4*USB2.0, power interface, 2*network interfaces, HDMI audio interface, 2*WiFi interfaces. |
| System | Supports Windows 7/8/10, Linux, etc. |
| BIOS | Supports power-on boot, timed power-on, network wake-up, diskless boot. |
| Physical Dimensions | Desktop or wall-mounted. |
| Operating Temperature | 0°C to 70°C. |
| Chassis Color | Black (customizable for large orders). |
| Power Supply | External power adapter, input AC 220V, output DC 19V/12V. |
- Full aluminum alloy casing with intelligent temperature-controlled fan for cooling.
- Compact size, flexible and compact installation.
- Integrated Intel® Core™ 7th/8th/10th Gen processors.
- Supports diskless booting, power-on boot, network wake-up, and automatic timed power on/off.
- 4K HD, dual gigabit Ethernet ports, 8 USB ports.
- Supports WIFI and 4G module for wireless internet.
