IPM-925
4K30 HDMI over IP in One
Features
4K AV over IP Extender Matrix & Video Wall & Multiview System with APP control
- Transmitter and Receiver in one box, switchable by software
- Input and output resolutions are up to 4K30, distance up to 150m
- Support Matrix Switching, Video Wall, multiview and distributions
- Support preview, OSD, EDID management etc functions
- Support to open up to 16-window per screen, but no PIP and POP
- Support POE and DC both power supply
- Support the control UI customizing
- Support Windows software, APP control, no IP control box needed
- Support TCP/UDP control commands
- Support the central control interfaces(1*RS232, 1*RS485, 1*Relay, 1*I/O)
- Support the Keyboard and mouse transmission, audio in&out
- Support ONVIF and RTSP protocols,4K AV over IP Extender Matrix

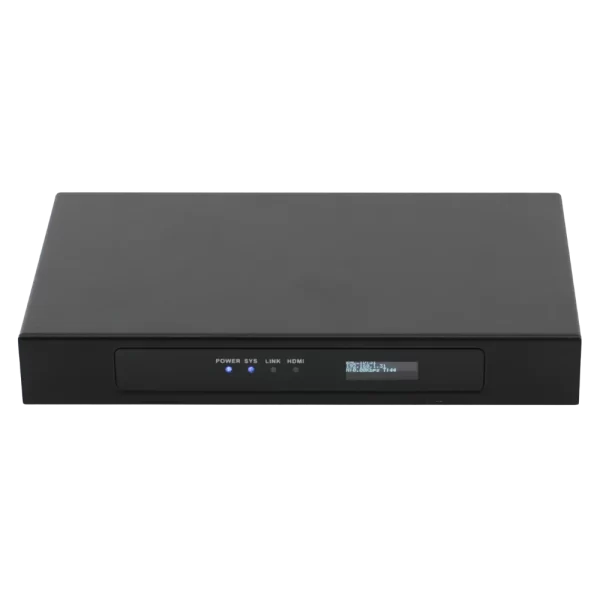

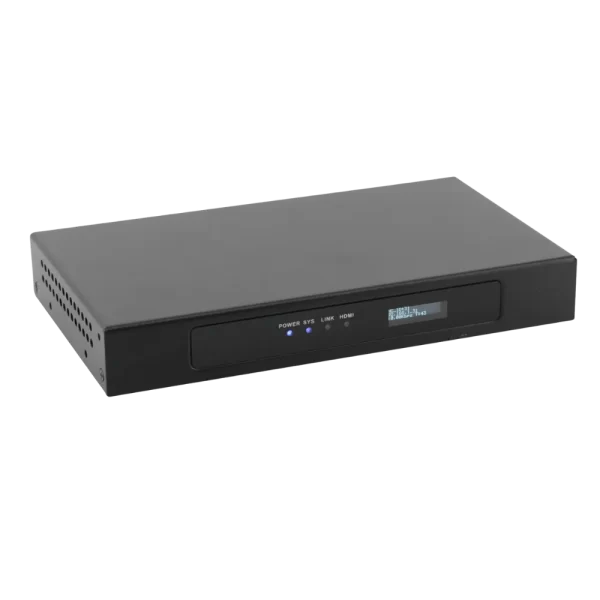

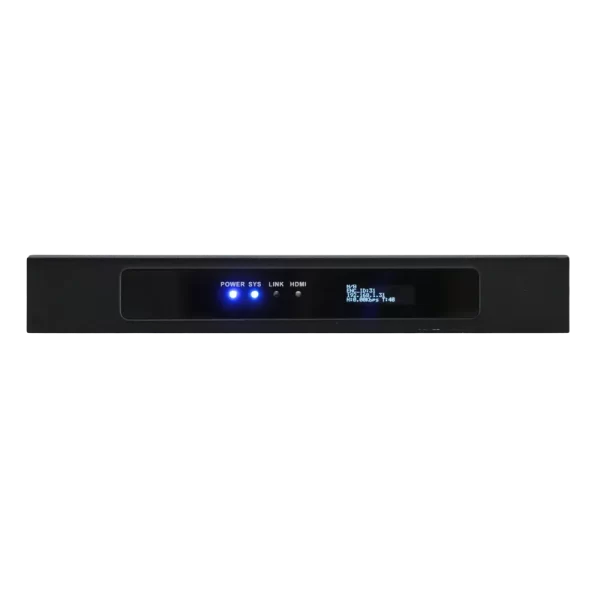

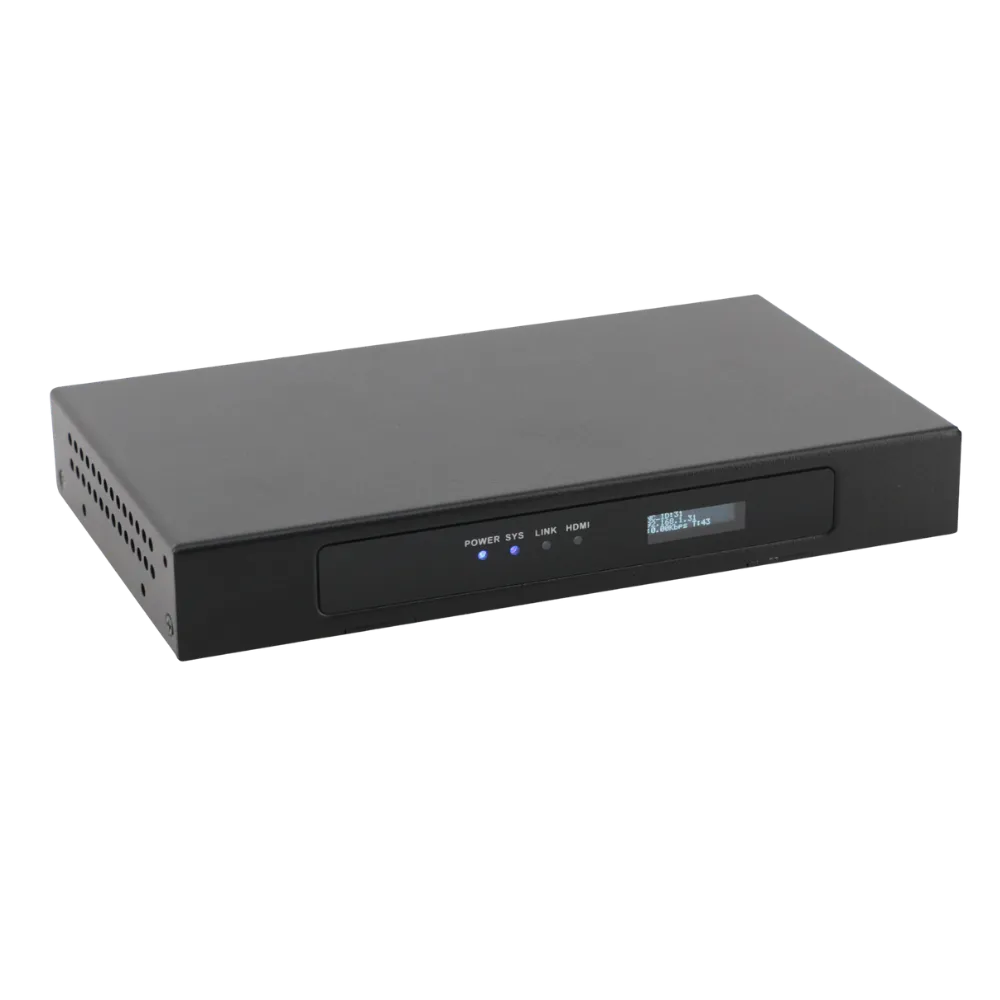

| Front panel | ||
|---|---|---|
| Indicators | PWR | power indicator |
| SYS | System indicator | |
| LINK | LAN cable connection indicator | |
| HDMI | HDMI signal status | |
| OLED Screen | Showing the Model, ID, IP, status | |

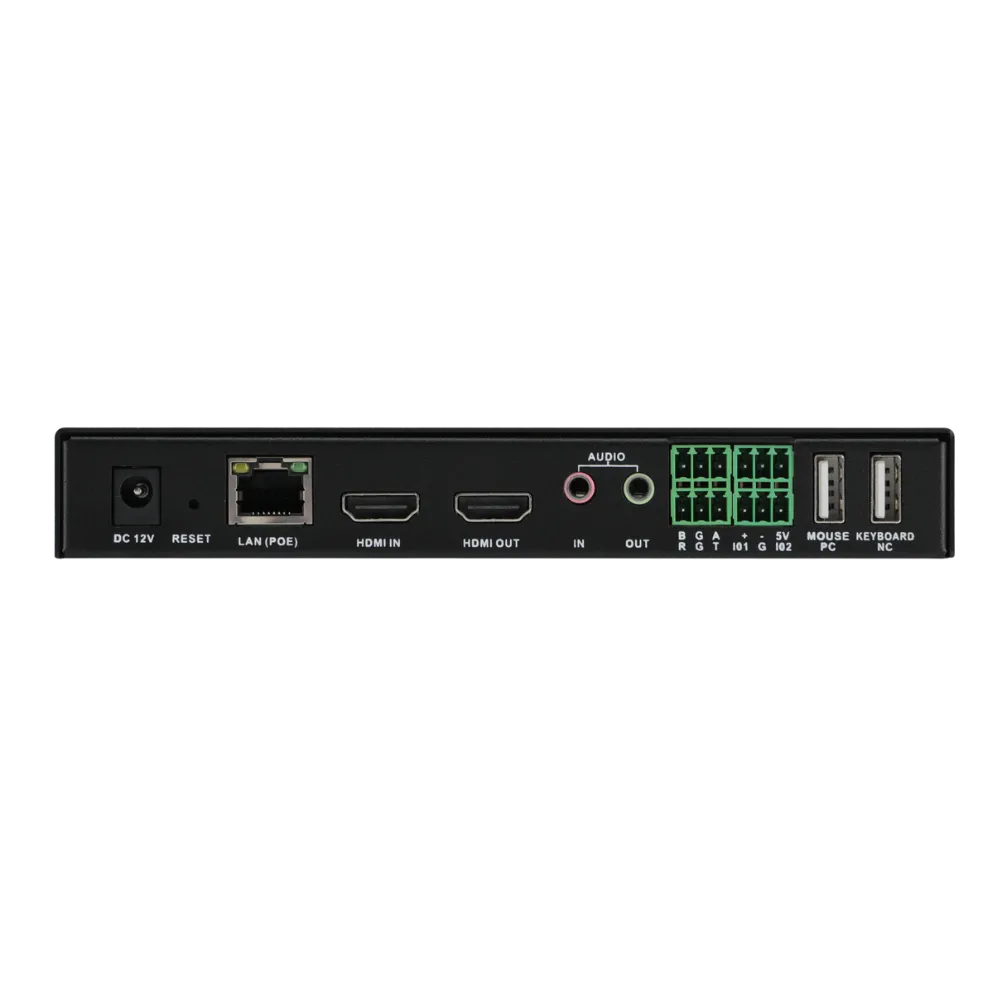

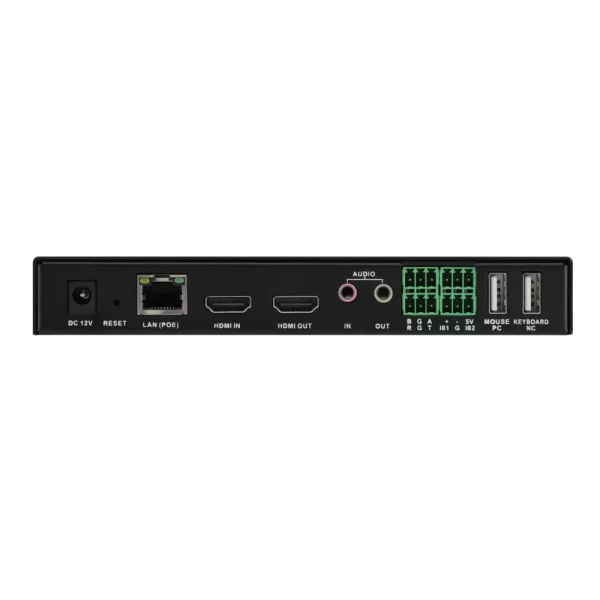

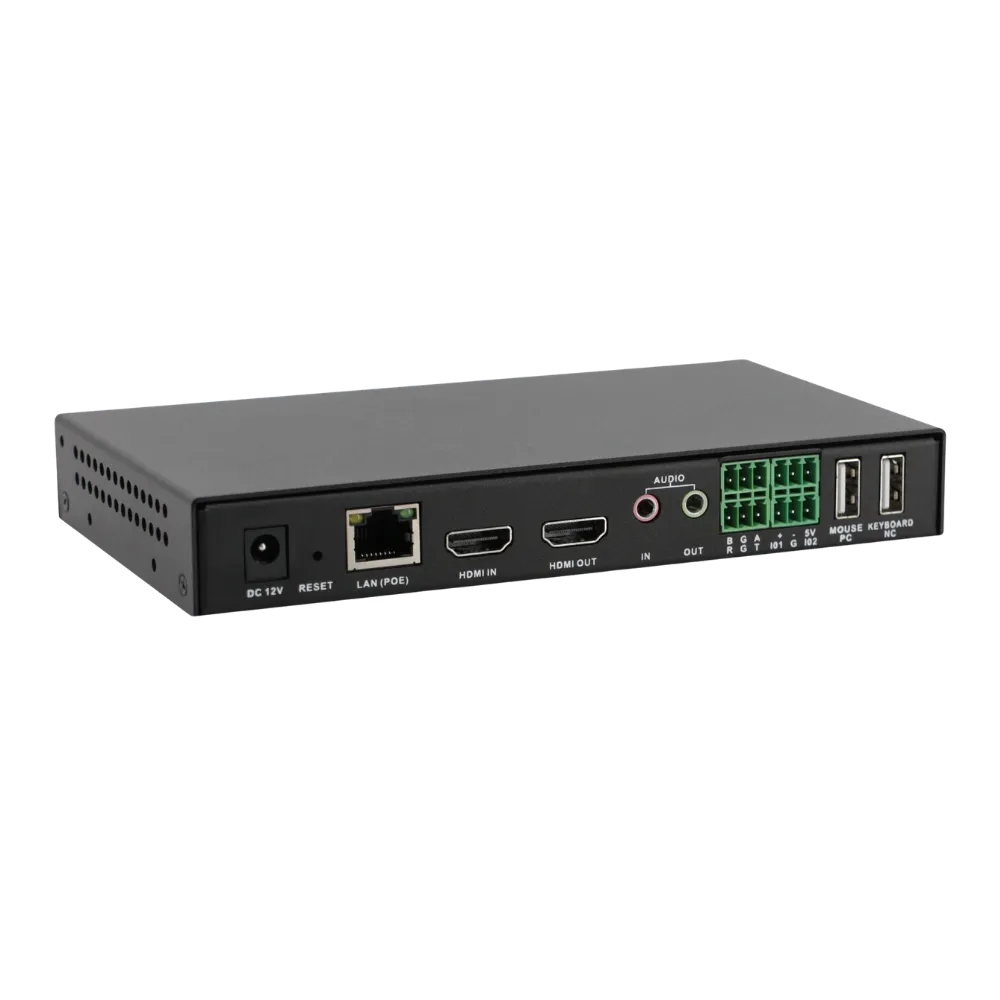

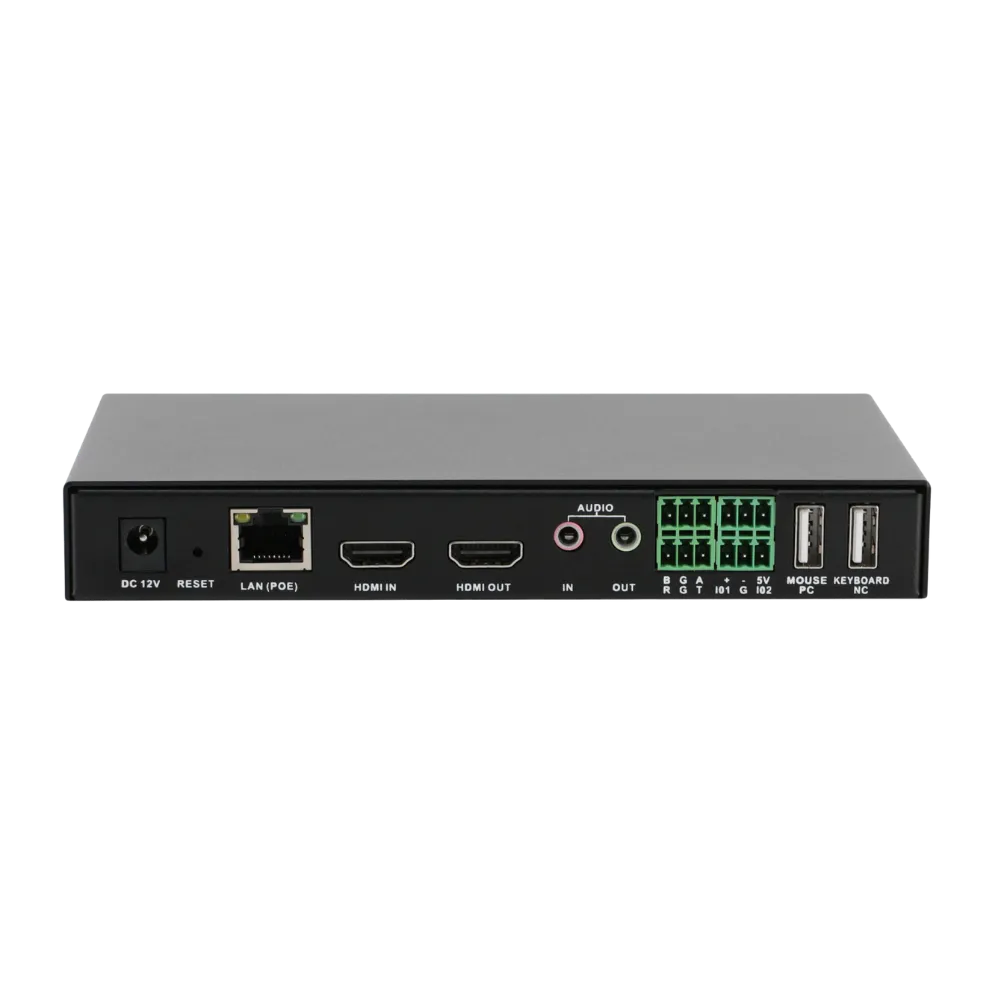

| Back panel | ||
| Video | 1*Type-A HDMI | |
| Control | 1*RS232 phoenix connector | |
| 1*RS485 phoenix connector | ||
| 1*Replay phoenix connector | ||
| 1* I/O phoenix connector | ||
| Audio | 1*3.5mm IN | |
| 1*3.5mm Out | ||
| LAN | 1*RJ-45(PoE) | |
| USB | 2*USB-B ports for Keyboard&mouse or PC host | |
| Power | DC 12V 1A | |
| Specification | ||
| Video | HDMI1.4, HDCP1.4, resolution up to 4K30 in and out | |
| Audio | 3.5mm Line in/out, or HDMI audio | |
| IP | Bandwidth up to 20Mbps | |
| Manually static IP address | ||
| Protocol H.264/265 | ||
| Latency 80~120ms | ||
| Control | 3rd Party Control by TCP/ UDP | |
| Windows PC software, Android/iOS APP | ||
| Product dimension | 175*110.5*25 (L*W*H)(mm) | |
| Temperature | -20℃~+60℃ | |
| Humidity | 10-90% | |
