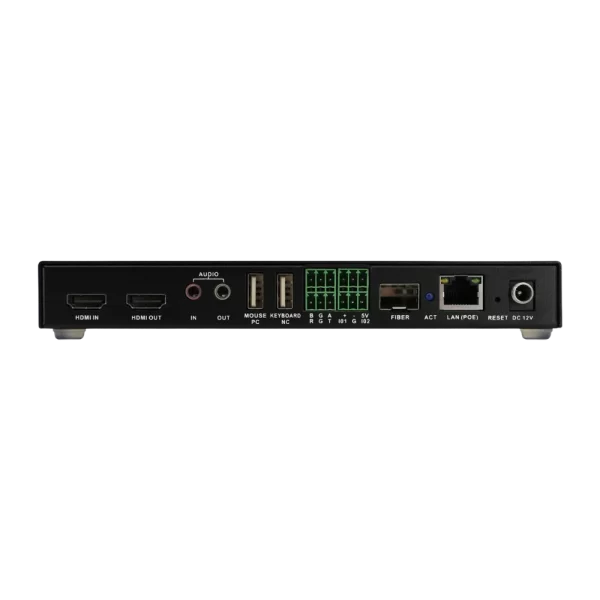

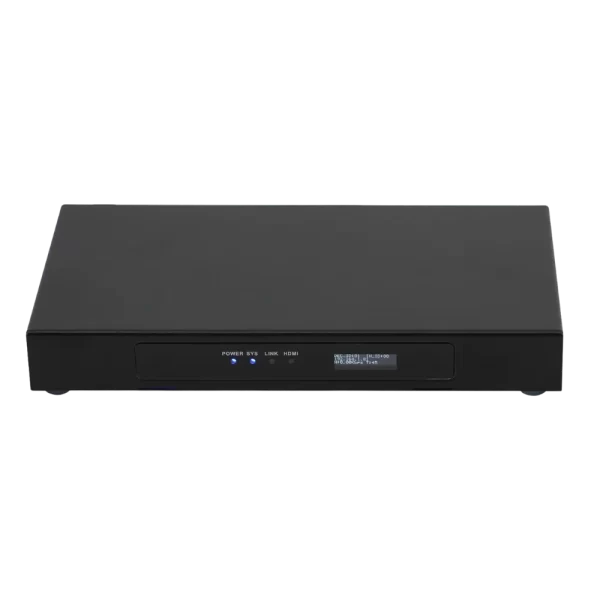

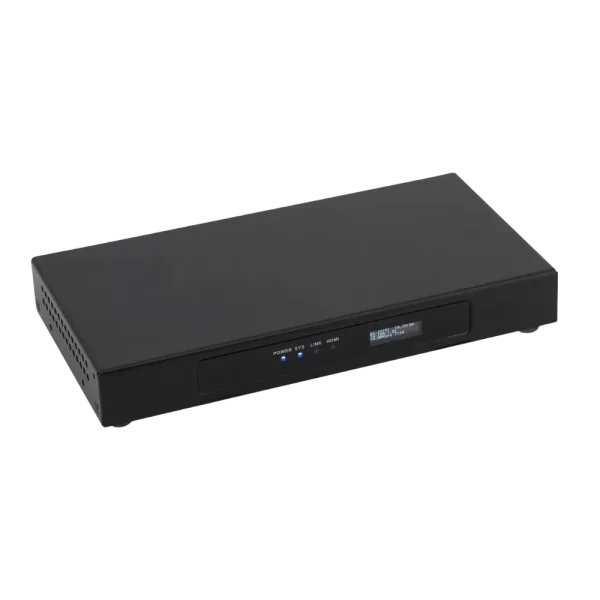

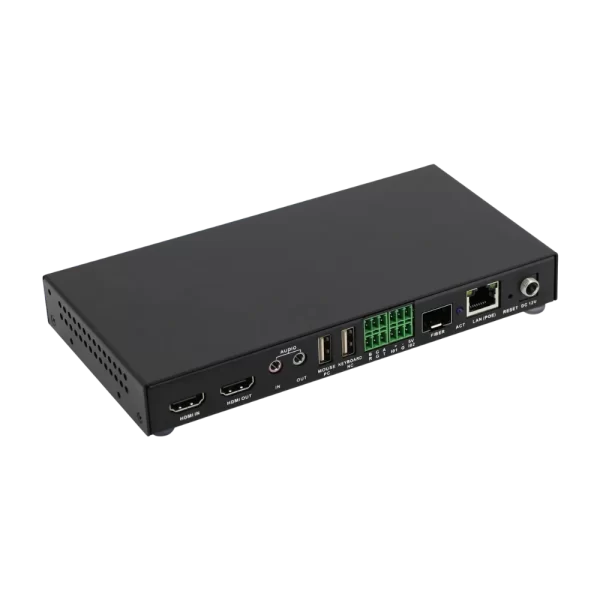

IPX-925
4K30 HDMI over IP in One
Features
- 4K Distributed Input & Output via AV over IP
- Serverless & Control Box-Free Architecture
- Transceiver Design (Unified Encoder & Decoder Configured via Windows Software)
- Resolution Up/Down Scaling Support
- Video Wall Control (Up to 16-Window Multi-View per Display)
- KVM Workstation with Keyboard & Mouse Control
- Real-Time Input & Output Source Preview
- Seamless Switching Support
- Customizable Control User Interface
- Audio Embedding & De-Embedding
- Multi-Protocol Control Interfaces (RS-232, RS-485, I/O, Relay)
- OSD Overlay & Scrolling Text Functionality
- Remote PC & Video Wall Management via Workstation
| No. | Details |
|---|---|
| Video input | 1*HDMI with one HDMI loop |
| Video output | 1*HDMI |
| Input resolution | Up to 3840*2160@30Hz |
| Output resolution | Up to 3840*2160@30Hz |
| Audio input | 1*3.5mm LINE in |
| Audio output | 1*3.5mm LINE out |
| Latency | 80ms-120ms |
| Control ports | RS232/RELAY/RS-485/IO |
| IP ports | 1*LANRJ45, 1*FIBER |
| PoE | Support standard POE function |
| USB | 2*USB-A, female |
| Power consumption | <10W |
| Product dimension | 193mm*100.5mm*25mm |
| Weight | 525g |
