Introduction

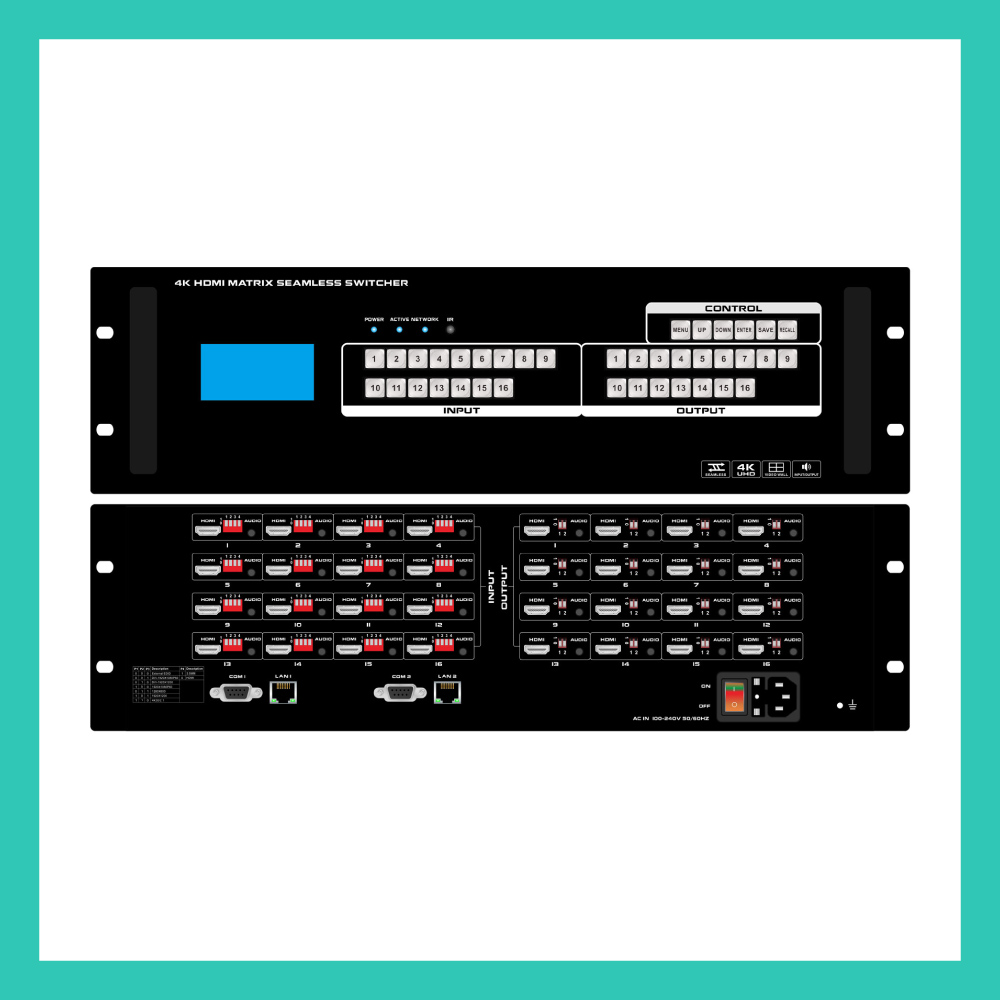

This is a new 4K30 FIX SVM series matrix switcher with the seamless switch, Video Wall function, EDID management, audio embedded&de-embedded, scaling function and all ports are HDCP compliant. With the friendly user control methods by IR remote, 2-Key push buttons with background blue light, WEB GUI/TCPIP/RS232/APP control, supports EDID management, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.
Features
- The resolution can up to 4K@30Hz inputs and outputs with scaling
- Supports seamless switching, no black/blue screen during the sources switch
- Supports the video wall function
- Supports the 3.5mm audio embedded and de-embedded
- Supports EDID management
- Supports RS-232 and TCP/IP Control(WEB GUI, APP), IR remote control
- Supports the push buttons control with blue lights
- Supports to rename the inputs and outputs
- Supports up to 40 scenes
Specification
| Model | FIX-SVM-400P-4K30 | FIX-SVM-800P-4K30 | FIX-SVM-1600P-4K30 |
| Description | 4×4 | 8×8 | 16×16 |
| Input | 4* HDMI, 4* 3.5mm audio | 8* HDMI, 8* 3.5mm audio | 16* HDMI, 16* 3.5mm audio |
| Output | 4* HDMI, 4* 3.5mm audio | 8* HDMI, 8* 3.5mm audio | 16* HDMI, 16* 3.5mm audio |
| Protocol Standard | Supports HDMI1.4, HDCP1.4 | ||
| Color Space | Support RGB444, YUV444, YUV422 , x.v.C standard color extension | ||
| Resolution | 640×480—3840×2160@30Hz(VESA ), 480i—4K@30Hz(HDTV ) | ||
| Distance | HDMI/DVI: 15m/40ft for 1080P, for 4K30 up to 10m/30ft | ||
| Control | iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light | ||
| Power | AC: 110V—260V 50/60Hz | ||
| Consumption | 15W(No Cards) | ||
| Dimension | 1.5U, 484*280*67(mm) | 3U, 484*280*128(mm) | |
| Weight | 4kg | 7kg | |
| Work Temperature | 0℃ ~50℃ | ||
| Storage Temperature | -20℃ ~55℃ | ||
