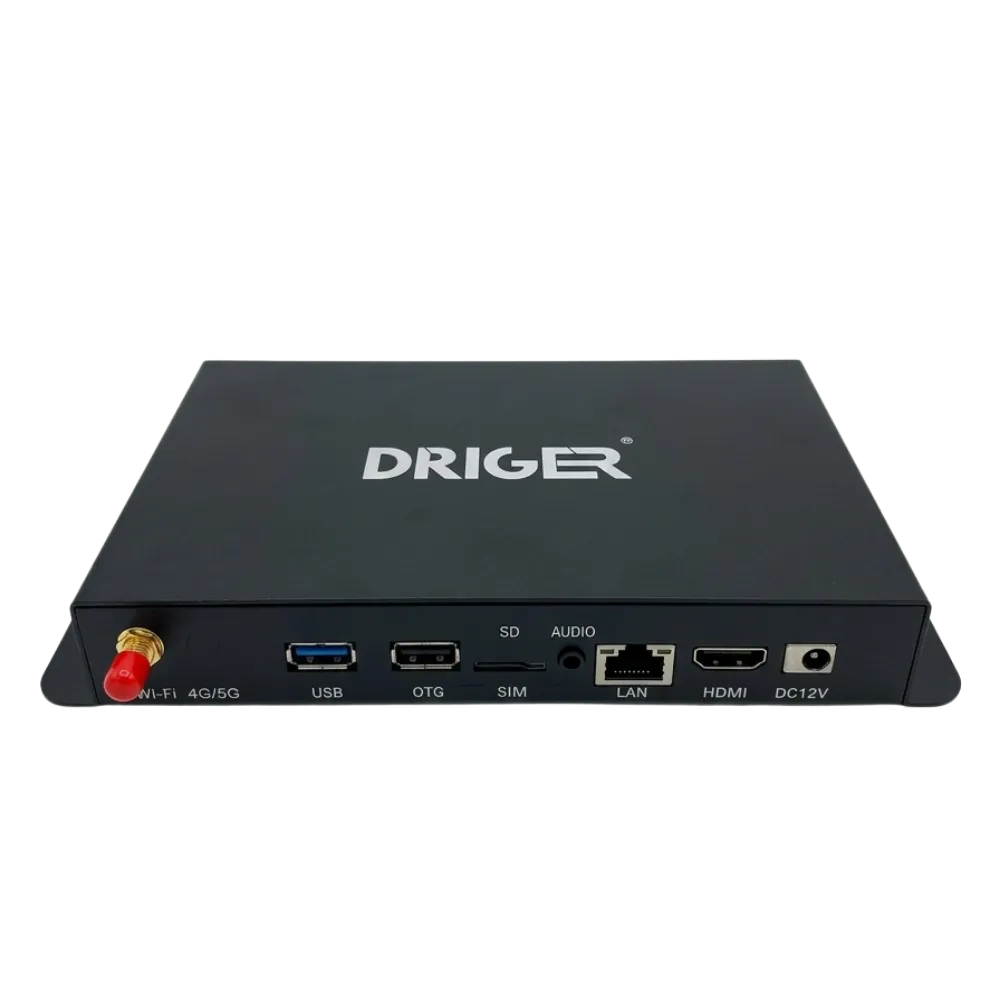

MPC3566
4K HDMI Output Android Network Media Player
Features
- Support 4K UHD Video Decoding
- Remote Cloud CMS Management
- Google Play App Store Support
- Third-Party App Installation
- Customizable Startup Animation
- Multi-Zone Split Screen Display
- Scheduled Power & Playback Timing
- Horizontal & Vertical Display Rotation
- Server & Standalone Mode Switching
- 24/7 Industrial Continuous OperatiMulti-Language OSD Support
| System | CPU | RK3566 Quad-core, up to 1.8GHz |
| GPU | Mali-G52 GPU | |
| Operating System | Android 11.0 | |
| RAM | DDR3, default 2G (4G/ 8G optional) | |
| Internal Storage | eMMC 32G (64G/128G optional) | |
| Applications have been installed | APK Installer, Email, Calculator, Browser, Voice Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Downloads, Camera, Music, Explorer, etc. | |
| Network | Support RJ45 R/A 100M Ethernet Standard 2.4GHz Wi-Fi, 802.11b/g/n protocol Bluetooth 4.0 | |
| Interface | USB | USB3.0*1, OTG*1 |
| HDMI Out | HDMI out *1(support 4K@60Hz video output) | |
| LAN | 100M Ethernet | |
| WiFi | Support 2.4G WiFi, protocol 802.11b/g/n | |
| Audio Out | 3.5mm audio jack*1 | |
| TF Card | TF Card Slot*1 | |
| RTC | Built-in real-time clock function | |
| IR | Receive signal from remote control | |
| Power Supply | Input: 100-240V/50-60Hz AC Output: 12V 1.5A DC | |
| File Format | Video Format | H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 |
| Audio Format | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP | |
| Image Format | JPG, BMP, PNG | |
| Others | Shell | Black metal shell |
| Working Temperature | -10℃~60℃ | |
| Accessory | Adapter, remote control, WIFI antenna, HDMI cable |
