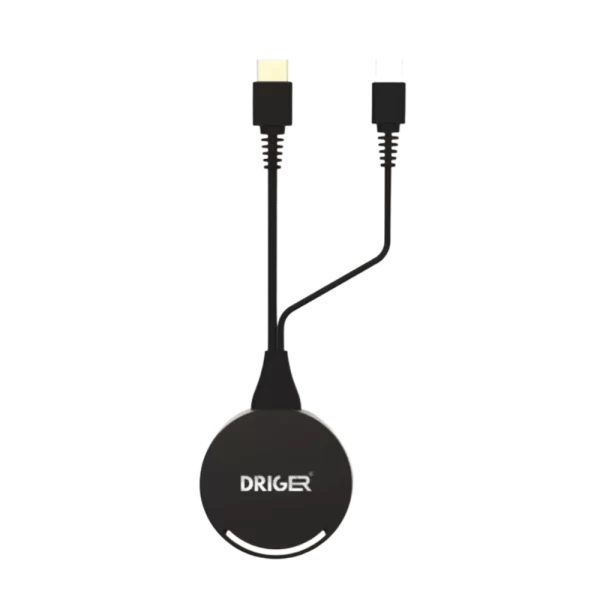

WM-50TH
Wireless Collaboration Conference System [HDMI Transmitter]
Features
- Wireless UC Room Integration (Camera, Mic, Speaker, & Display)
- Multi-Screen Presentation (Up to 4 Smart Devices)
- One-Touch System Control
- Quad-Display Extension for Large Rooms
- Universal Smart Device Collaboration
- Smooth AV & HD Picture Quality
| Model No | WM-50 | |
|---|---|---|
| Description | Wireless AV Content Sharing & BYOD collaboration System | |
| General | POE Standard | IEEE802.3af |
| DC Power / Power Consumption | 12V / POE (10W MAX) | |
| Dimension | 165mm x 95mm x 24.5mm | |
| Weight | 0.4lbs (200g) | |
| Temperature | (-)20 °C to 60 °C | |
| Humidity | 20% to 90% | |
| Video / Audio Formats | HDMI Output | HDMI output 1x HDMI 19-pin female connector |
| Video Output Resolution | 3840×2160@60Hz, 3840×2160@30Hz, 1920×1080@60Hz | |
| Format Compliance | HDMI1.4/HDMI2.0 | |
| Video Capacity | 1080P@<60Hz Airplay for IOS devices, 1080P@<60Hz “Wireless Media” app, 1080P@<60Hz for all show-me button | |
| HDCP | HDCP1.4/HDCP2.2 | |
| Analog Audio Output | 1× 3.5mm PC audio female connectors | |
| Interface | LAN Port | RJ45 ×2: 1000Mbps x 1, 100Mbps x 1 |
| USB Interface | USB3.0 x 3, USB 2.0 x 1, Type-C x 2 | |
| Audio Input | AirPlay, Windows/MAC, WMH, USB/BT SpeakerPhone | |
| Control Connectors | 3.5mm Phoenix terminal/ RS232 interface | |
| Dongle | HDMI with USB / Type-C | |
| Features | Window Simultaneous on Screen | ≥4+ 14 (4 main windows+14 thumbnail windows) |
| Number of simultaneous | Connections ≥ 16 | |
| Wireless Data Rate | Up to 1200Mbps | |
| Frame Rate / Video Frame Rate | 20–60 FPS | |
| Latency | < 100ms, Min 20ms | |
| Wireless Transmission Protocol | WIFI IEEE 802.11 a/g/n/ac | |
| Frequency band | 2.4 GHz & 5 GHz | |
| Dynamic Wi-Fi Password | Included | |
| Data Encryption | AES & RSA | |
| Wireless Display Technology | Airplay, Miracast, Chromecast, App for different OS | |
| Control | RS232, Telnet, Central Management App | |
| Management Platform | Batch configuration, Batch upgrade and User manager | |
| Collaboration | Split-screen | 4 |
| Wireless USB Cam/Speaker, Mic | Supported | |
| Wireless Touchback | Supported | |
| Whiteboard annotation | Supported | |
| Remote View | Supported | |
- Wireless UC Room Integration (Camera, Mic, Speaker, & Display)
- Multi-Screen Presentation (Up to 4 Smart Devices)
- One-Touch System Control
- Quad-Display Extension for Large Rooms
- Universal Smart Device Collaboration
- Smooth AV & HD Picture Quality
