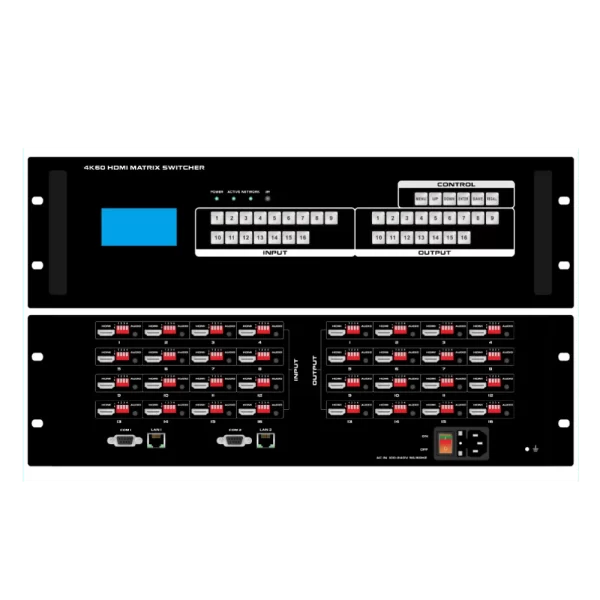

Fixed 16×16 HDMI 4k60 HDR matrix switcher, 3U
Support EDID DIP switch for all inputs, DIP switch for outputs
Support HDMI2.0, HDCP2.2
Support 3.5mm audio embedded and 3.5mm audio de-ebmedded
Support RS232/iPad/APP/WEB GUI/ IR rmeote and push button controls

WhatsApp Us

Introduction

This is a new fixed 4K60Hz HDMI matrix switcher with 16 HDMI input ports with 16* 3.5mm audio in and 16 HDMI output ports with 16* 3.5mm audio outs, the resolution can up to 4K60Hz and all ports are HDCP compliant. With the friendly user control methods: IR remote control, 2-key push front buttons with background blue light, WEB GUI, TCP/IP, RS232,UDP and the iOS/Android APP control, supports EDID management by the DIP switches, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.

Features

  • 16 HDMI inputs with 16 audio in and 16 HDMI outputs with 16 audio outs
  • Supports HDMI2.0, HDCP compliant
  • The resolution can up to 4K@60Hz
  • Deep Color support 48/36/30/24-bit
  • Supports LPCM 7.1CH, Dolby Digital and DTS-HD Master Audio
  • Supports EDID management by DIP switch
  • Supports RS-232, UPD(4000) and TCP/IP(5000) Control protocols
  • Supports 2-press push buttons control with blue lights
  • Supports WEB GUI, APP, RS232, push-button, IR remote controls

Specification

Description 16×16 HDMI 2.0 matrix switcher with audio
Input 16*HDMI, 16*3.5mm audio, 2*RS232, 2*LAN
Input 16*HDMI, 8*3.5mm audio
Control ports RS-232, UPD(4000) and TCP/IP(5000) Control protocols
Resolution 480i, 576i, 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 4K@30Hz, 4K@60Hz
Color Space Support RGB444, YUV444, YUV422 , x.v.C standard color extension
Control iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light
Power AC: 100V—240V 50/60Hz
Consumption 20W
Dimension 3U, 482*280*133(mm)
Weight 9kg
Work Temperature 0℃ ~40℃
Storage Temperature -20℃ ~55℃

DIP switch for inputs:

EDID management Audio
D1 D2 D3 Function D4 Function
1 1 1 4k60 1 3.5MM
1 0 0 1080P2.1 0 HDMI
1 0 1 HDMI-1200
0 1 1 1440*900
0 0 1 DVI-1080
0 1 0 DVI-1200
1 1 0 4k2.1
0 0 0 External EDID

DIP switch for outputs:

Resolution Scaling No functions
D1 D2 Function D3 D4
0 0 Resolution bypass No functions
0 1 Force the 4K30/50/60 resolution to 1080P30/50/60
1 0 Force 4K50/60 420 resolution to 4K50/60 444
1 1 Resolution bypass
Weight 9 kg
Dimensions 49 × 28 × 14 cm
