Introduction

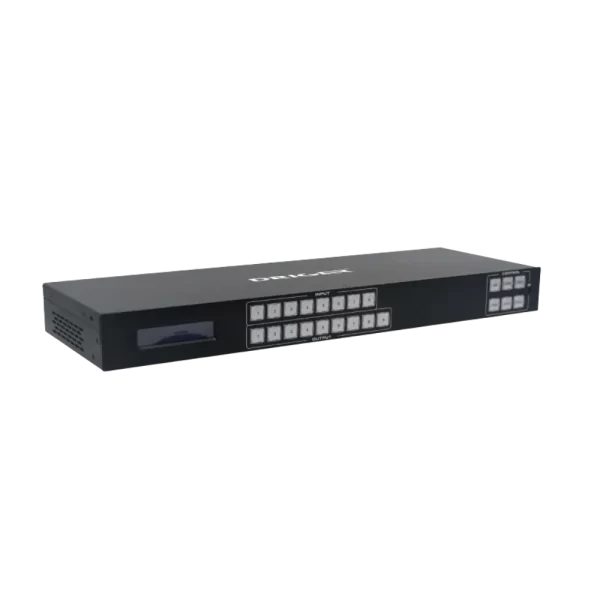

This is a new fixed 4K2K HDMI matrix switcher with 8 HDMI inputs and 9 HDMI outputs, the resolution can up to 4K30Hz and all ports are HDCP compliant. With the friendly user control methods by IR remote control, 2-Press push buttons with background blue light, WEB GUI, APP and RS232/UDP commands, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.
Features
- 8 HDMI inputs and 9 HDMI outputs
- Support 1 audio(3.5mm) de-ebmedded
- Supports HDMI1.4, HDCP1.4
- The resolution can up to 4K@30Hz
- Deep Color support 48/36/30/24-bit
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital and DTS-HD Master Audio
- Supports IR remote control(IR remote control codes are available)
- Supports smart EDID management, including 8-output EDID, 15 internal EDID.
- Supports RS-232 and TCP/IP Control(WEB GUI, APP and IR remote)
- Supports 2-press push buttons control with blue lights
- Supports to rename the inputs and outputs, scenes
Specification
| Name | FIXED 4K2K 8×9 HDMI Matrix Switcher |
| Resolutions | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 4K@30Hz |
| Input ports | 8 * HDMI, 1* RS-232(control), 1 * RJ-45(control) |
| Output ports | 9 * HDMI, 1* RS-232(control) |
| ESD Protection | ±8kV (Air-gap discharge), ±4kV (Air-gap discharge) |
| Controlling | IR remote control, front buttons control, RS232, UDP |
| Power | DC:12V 2A |
| Dimension(mm) | 440*150*44(mm) |
| Weight | 2kg |
