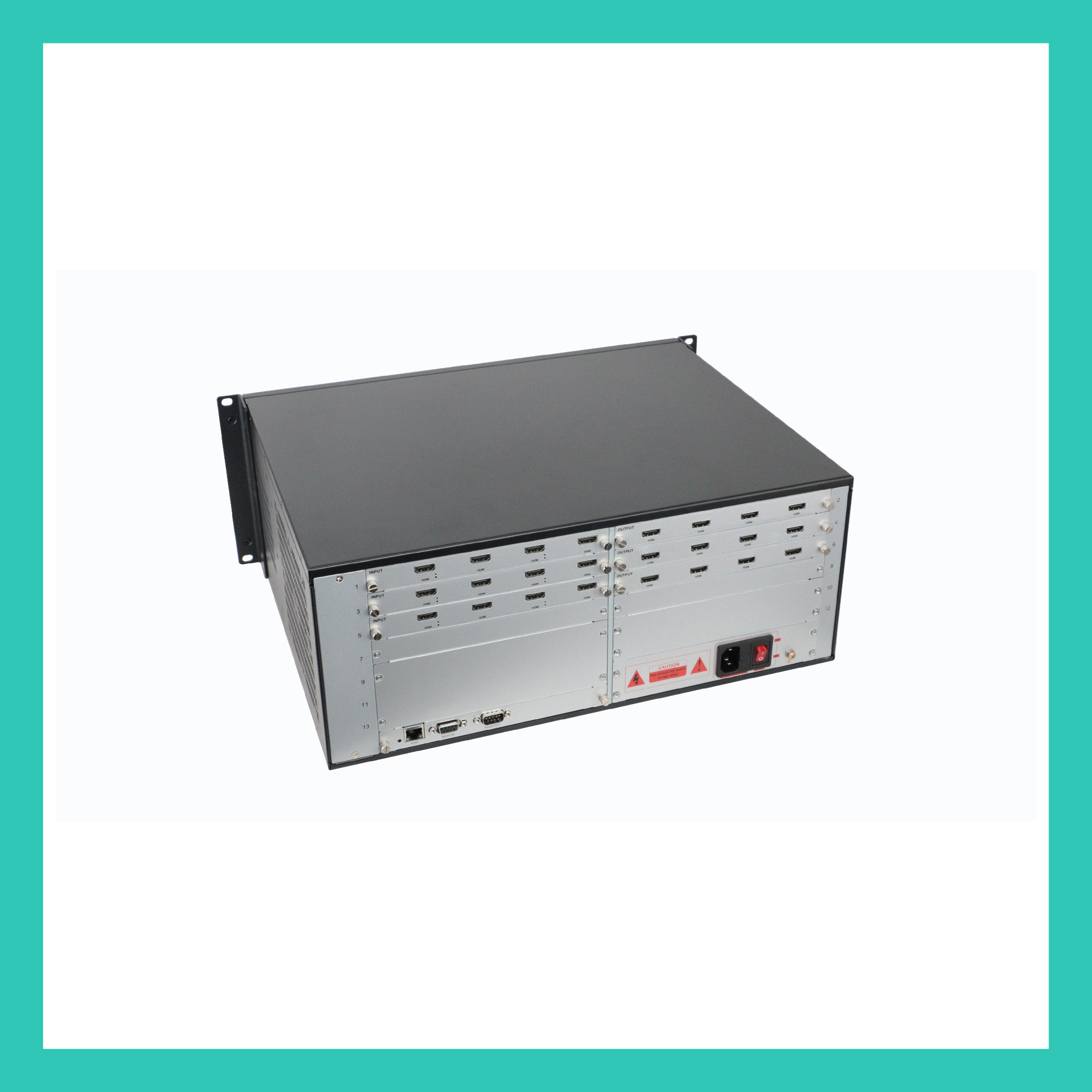

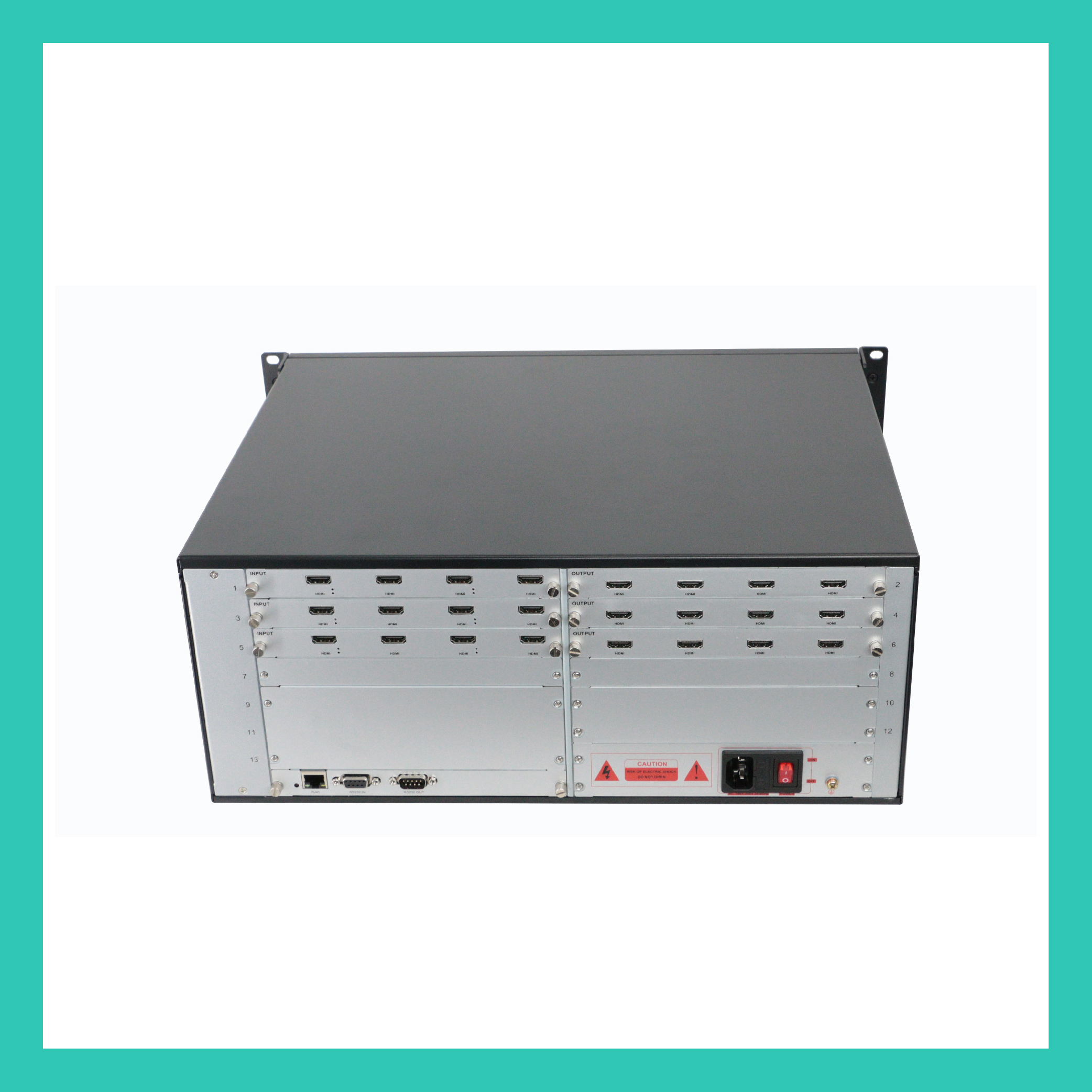

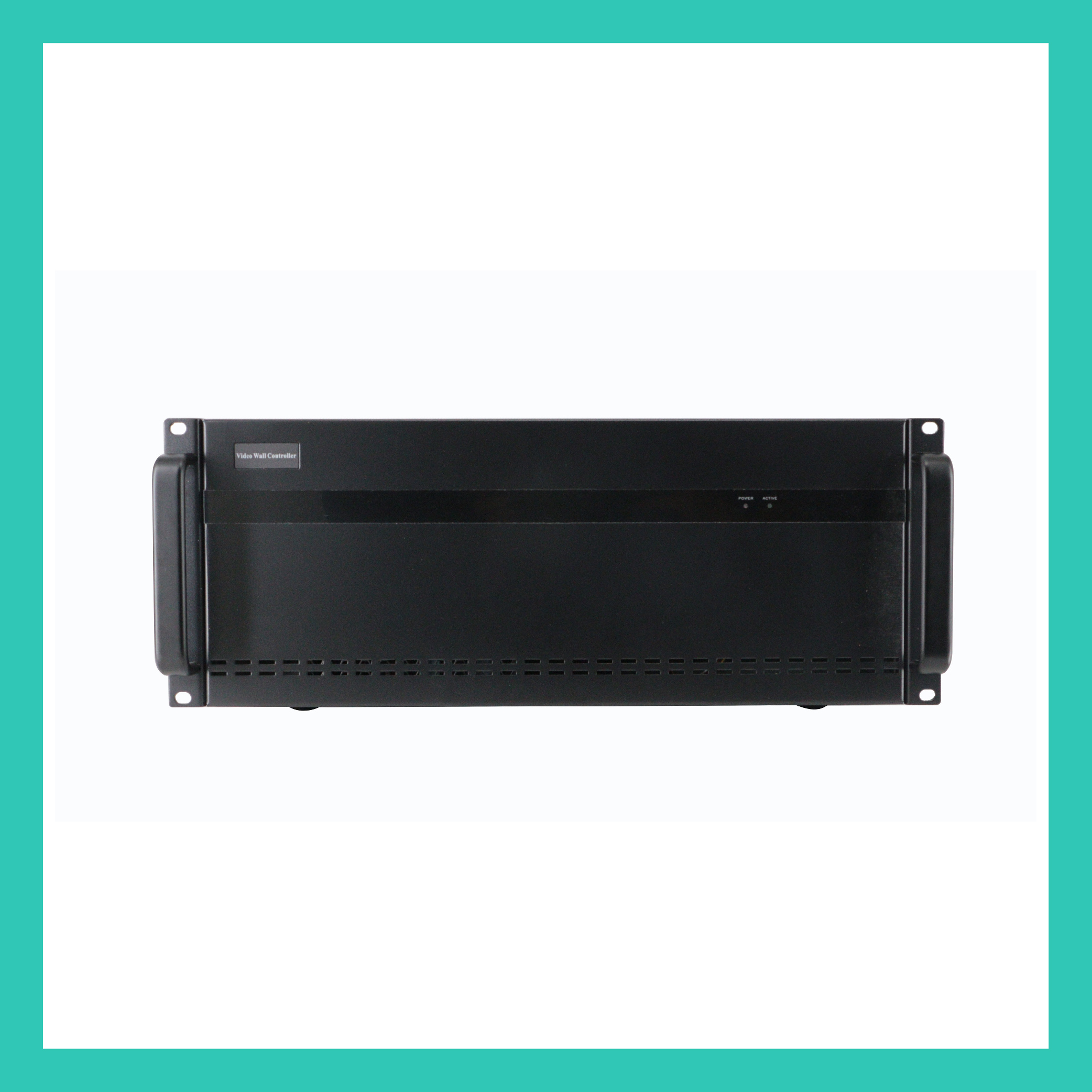

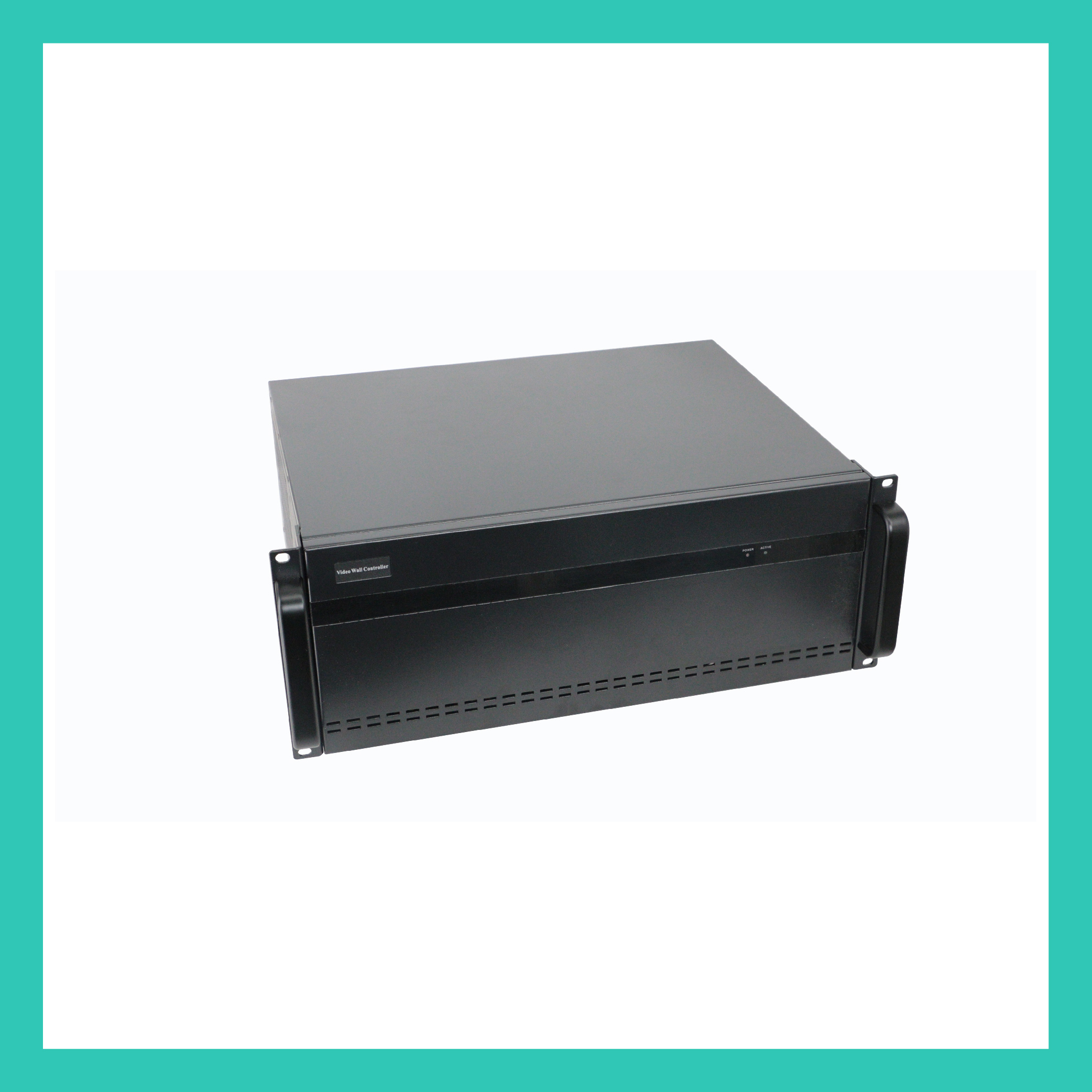

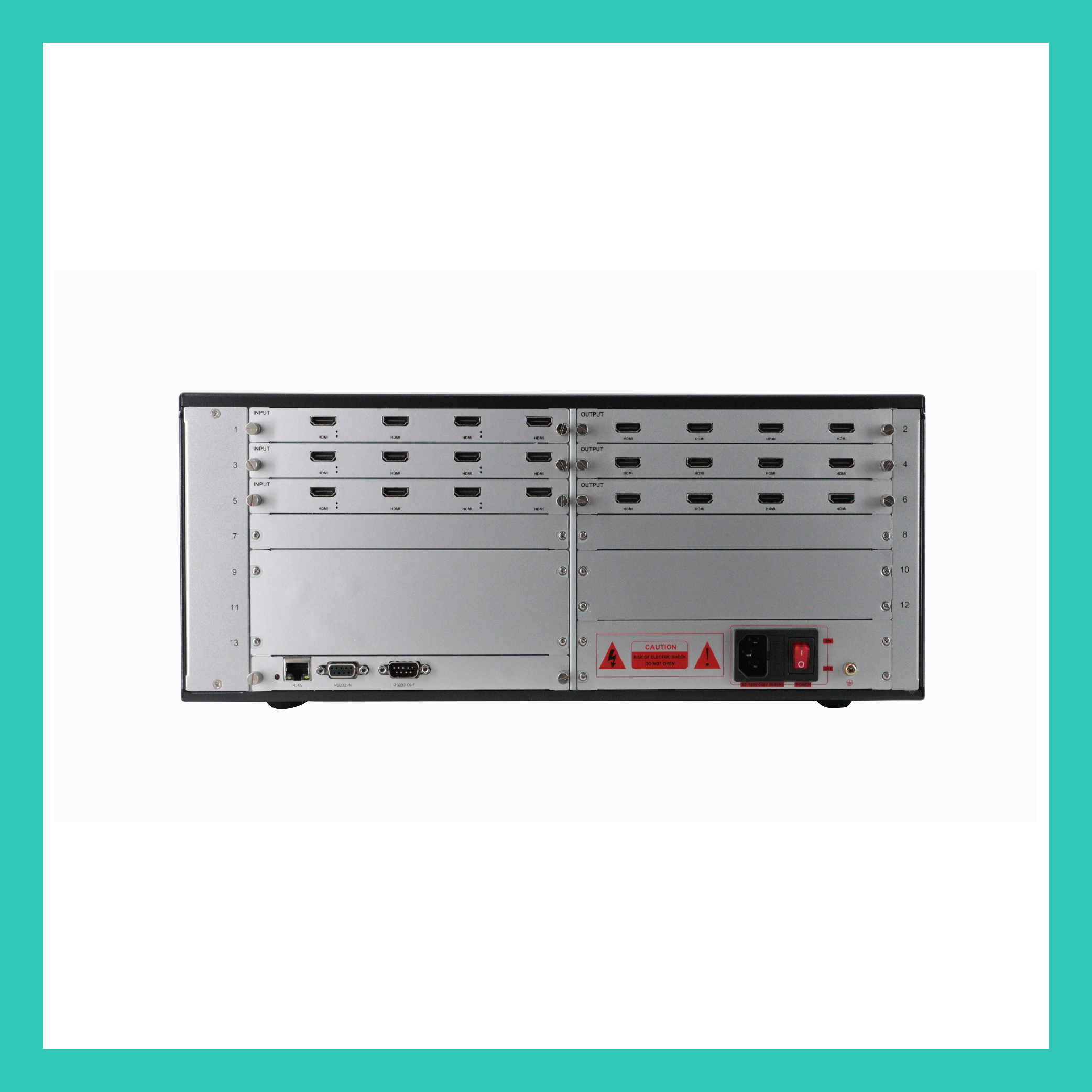

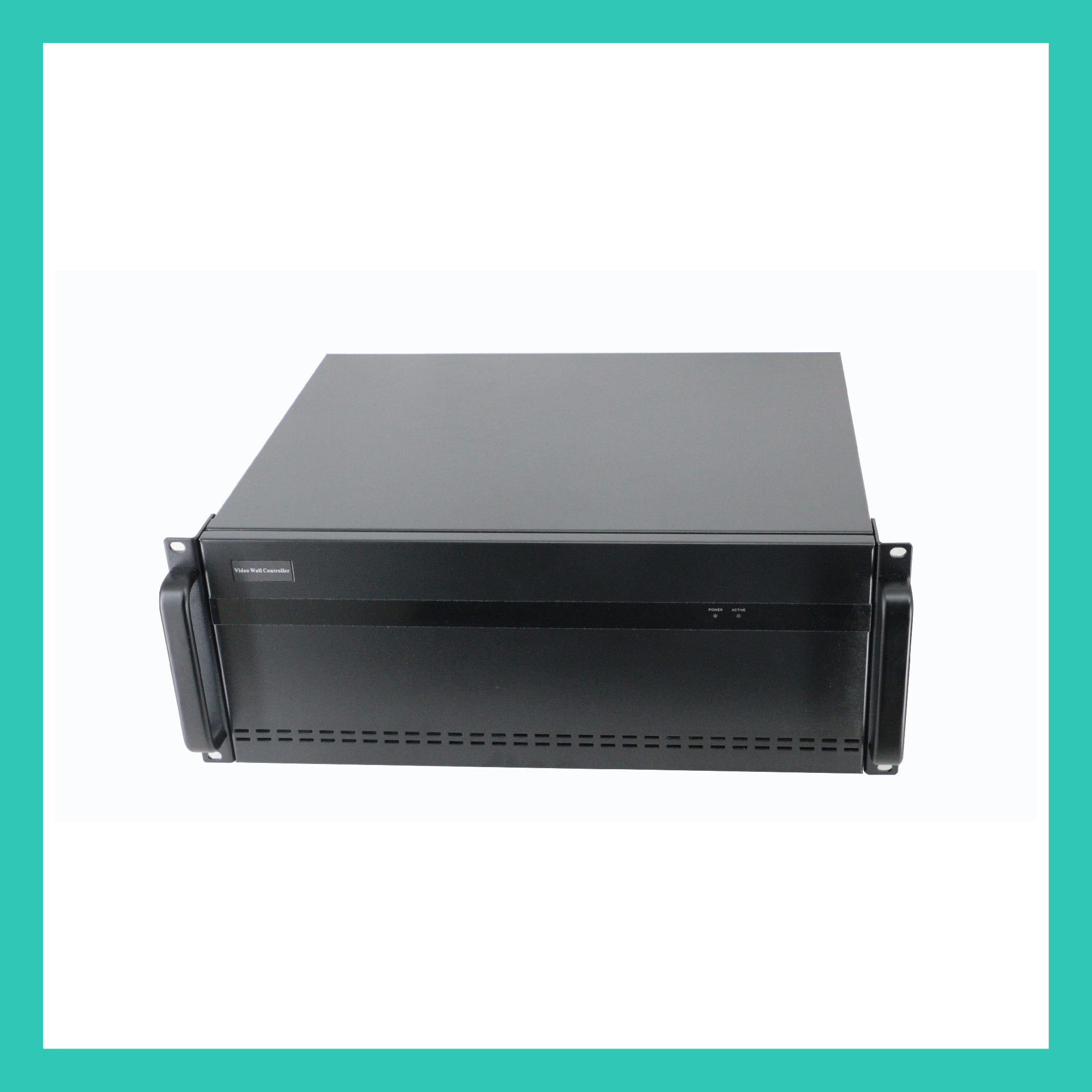

VPX800-4U
4-win chassis New TV Wall Video Processor
Features

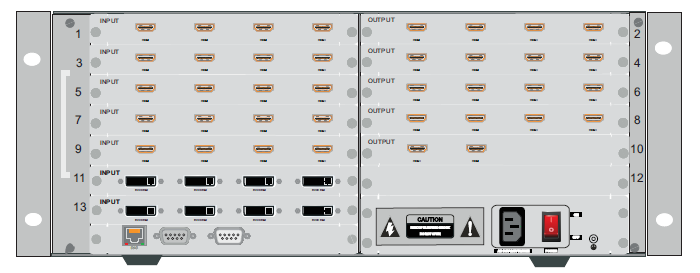

- 4U modular chassis
- 8 input slots + 5 output slots
- Supports to open 4 windows on screen

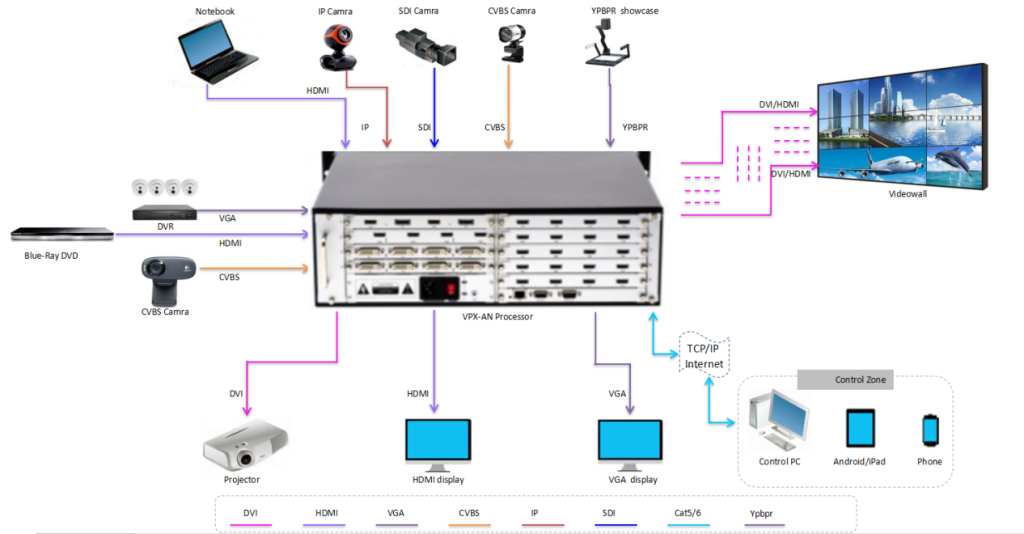

- Supports PIP, cross-screen, pure-hardware design and IP input
- Supports up to Video wall groups management
- Supports the PC software/ APP/ RS232 control
- Supports scrolling text and background image(*need optional function card)
| NAME | VPX800-4U |
|---|---|

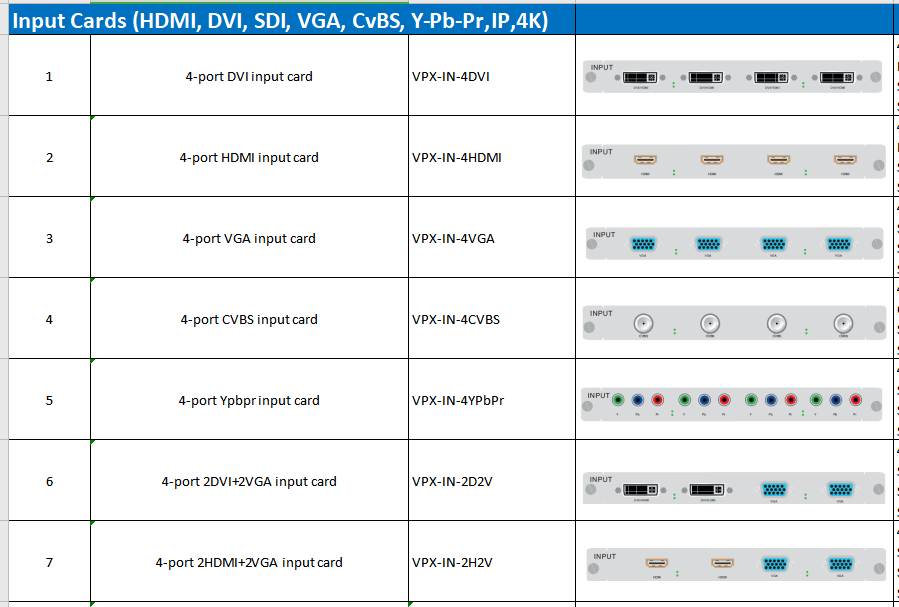

| Input slots number | 8 slots, Up to 32 inputs(1-card 4-port) |

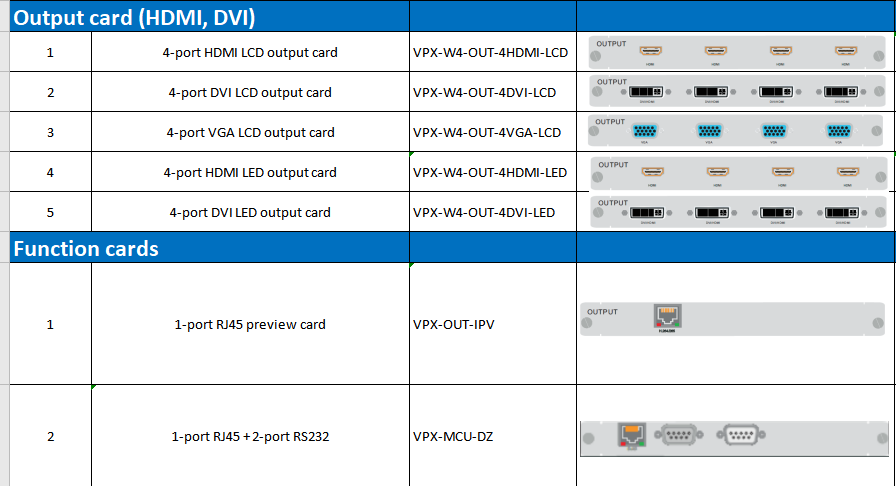

| Output slots number | 5 slots, Up to 18 outputs(1-card 4-port) |
| Control | RS232, LAN, WEB GUI for Scenes |
| Dimension | 410*310*178mm |
| Weight | 15kg |
| Power Supply | 100VAC–240VAC 50/60Hz |
| Consumption | 950W |
| Working Humidity | 10%–90% |
| Temperature | -10˚C – 50˚C |
| Storage | -20˚C – 75˚C |
